Control valves

Electric actuators

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

TI-P358-28

CH Issue 3

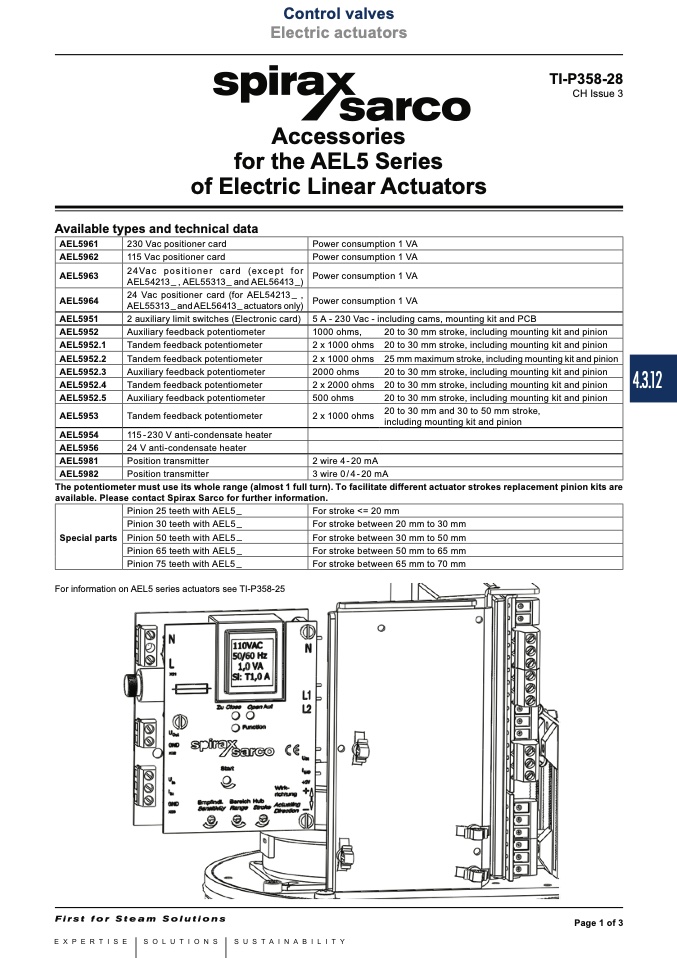

Accessories

for the AEL5 Series

of Electric Linear Actuators

Available types and technical data

AEL5961 230 Vac positioner card Power consumption 1 VA

AEL5962 115 Vac positioner card Power consumption 1 VA

AEL5963

24Vac positioner card (except for

AEL54213 _ , AEL55313 _ and AEL56413 _)

Power consumption 1 VA

AEL5964

24 Vac positioner card (for AEL54213_ ,

AEL55313 _ and AEL56413 _ actuators only)

Power consumption 1 VA

AEL5951 2 auxiliary limit switches (Electronic card) 5 A - 230 Vac - including cams, mounting kit and PCB

AEL5952 Auxiliary feedback potentiometer 1000 ohms,

20 to 30 mm stroke, including mounting kit and pinion

AEL5952.1 Tandem feedback potentiometer

2 x 1000 ohms 20 to 30 mm stroke, including mounting kit and pinion

AEL5952.2 Tandem feedback potentiometer

2 x 1000 ohms 25 mm maximum stroke, including mounting kit and pinion

AEL5952.3 Auxiliary feedback potentiometer

2000 ohms

20 to 30 mm stroke, including mounting kit and pinion

AEL5952.4 Tandem feedback potentiometer 2 x 2000 ohms 20 to 30 mm stroke, including mounting kit and pinion

AEL5952.5 Auxiliary feedback potentiometer 500 ohms

20 to 30 mm stroke, including mounting kit and pinion

AEL5953 Tandem feedback potentiometer 2x1000ohms

20to30mmand30to50mmstroke,

including mounting kit and pinion

AEL5954 115 - 230 V anti-condensate heater

AEL5956 24 V anti-condensate heater

AEL5981 Position transmitter 2 wire 4-20 mA

AEL5982 Position transmitter 3 wire 0/4-20 mA

The potentiometer must use its whole range (almost 1 full turn). To facilitate different actuator strokes replacement pinion kits are

available. Please contact Spirax Sarco for further information.

For information on AEL5 series actuators see TI-P358-25

Special parts

Pinion 25 teeth with AEL5 _ For stroke <= 20 mm

Pinion 30 teeth with AEL5 _ For stroke between 20 mm to 30 mm

Pinion 50 teeth with AEL5 _ For stroke between 30 mm to 50 mm

Pinion 65 teeth with AEL5 _ For stroke between 50 mm to 65 mm

Pinion 75 teeth with AEL5 _

For stroke between 65 mm to 70 mm

Page 1 of 3

4.3.12
