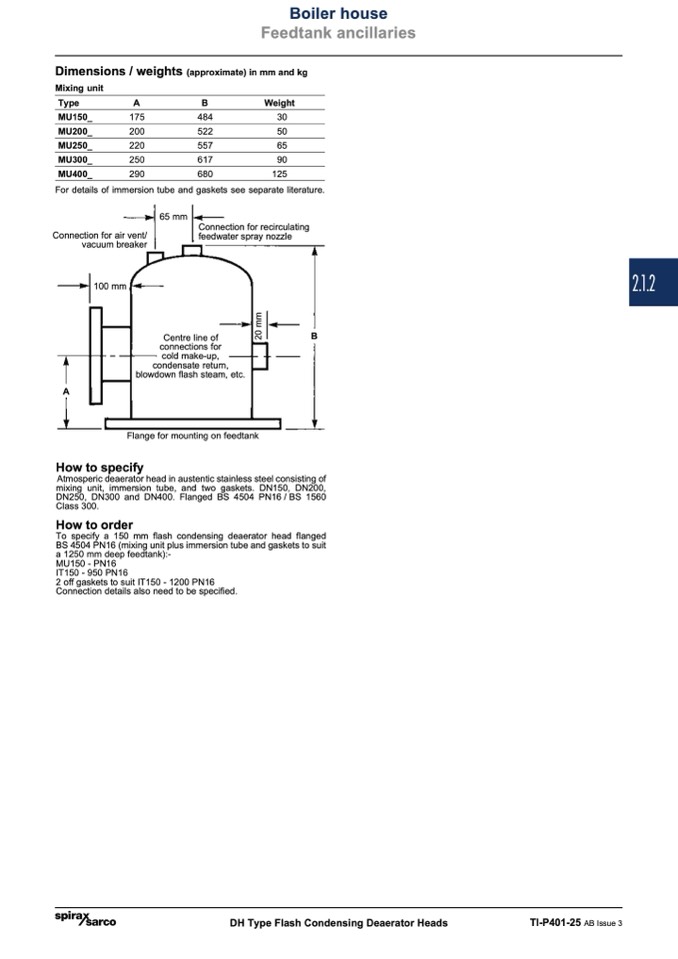

Dimensions / weights (approximate) in mm and kg

Mixing unit

Type

A

B

Weight

MU150_

175

MU200_

200

MU250_

220

MU300_

250

MU400_

290

484

30

522

50

557

65

617

90

680

125

For details of immersion tube and gaskets see separate literature.

Connection for air vent/

vacuum breaker

100 mm

A

How to specify

65 mm

Connection for recirculating

Centre line of

connections for

cold make-up,

condensate return,

blowdown flash steam, etc.

Flange for mounting on feedtank

B

Atmosperic deaerator head in austentic stainless steel consisting of

mixing unit, immersion tube, and two gaskets. DN150, DN200,

DN250, DN300 and DN400. Flanged BS 4504 PN16 / BS 1560

Class 300.

How to order

To specify a 150 mm flash condensing deaerator head flanged

BS 4504 PN16 (mixing unit plus immersion tube and gaskets to suit

a 1250 mm deep feedtank):-

MU150 - PN16

IT150 - 950 PN16

2 off gaskets to suit IT150 - 1200 PN16

Connection details also need to be specified.

feedwater spray nozzle

DH Type Flash Condensing Deaerator Heads
