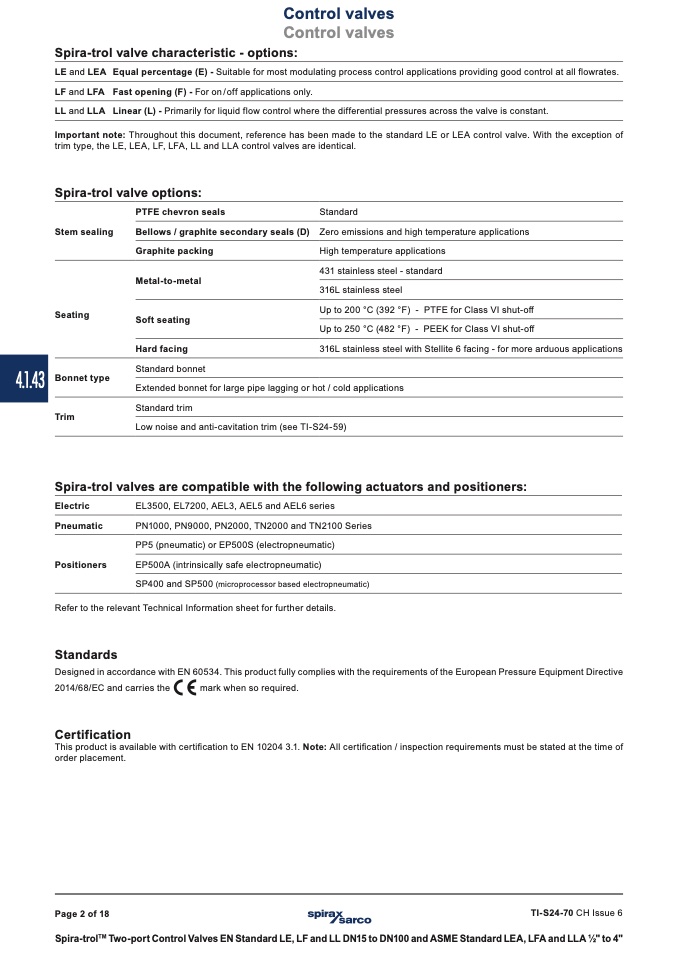

Control valves

Control valves

4.1.43

Spira-trol valve characteristic - options:

LE and LEA Equal percentage (E) - Suitable for most modulating process control applications providing good control at all flowrates.

LF and LFA Fast opening (F) - For on/ off applications only.

LL and LLA Linear (L) - Primarily for liquid flow control where the differential pressures across the valve is constant.

Important note: Throughout this document, reference has been made to the standard LE or LEA control valve. With the exception of

trim type, the LE, LEA, LF, LFA, LL and LLA control valves are identical.

Spira-trol valve options:

Stem sealing

Seating

Bonnet type

Trim

PTFE chevron seals

Bellows / graphite secondary seals (D)

Graphite packing

Metal-to-metal

Soft seating

Hard facing

Standard bonnet

Standard

Zero emissions and high temperature applications

High temperature applications

431 stainless steel - standard

316L stainless steel

Up to 200 °C (392 °F) - PTFE for Class VI shut-off

Up to 250 °C (482 °F) - PEEK for Class VI shut-off

316L stainless steel with Stellite 6 facing - for more arduous applications

Extended bonnet for large pipe lagging or hot / cold applications

Standard trim

Low noise and anti-cavitation trim (see TI-S24-59)

Spira-trol valves are compatible with the following actuators and positioners:

Electric

Pneumatic

Positioners

EL3500, EL7200, AEL3, AEL5 and AEL6 series

PN1000, PN9000, PN2000, TN2000 and TN2100 Series

PP5 (pneumatic) or EP500S (electropneumatic)

EP500A (intrinsically safe electropneumatic)

SP400 and SP500 (microprocessor based electropneumatic)

Refer to the relevant Technical Information sheet for further details.

Standards

Designed in accordance with EN 60534. This product fully complies with the requirements of the European Pressure Equipment Directive

2014/68/EC and carries the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1. Note: All certification / inspection requirements must be stated at the time of

order placement.

Page 2 of 18

TI-S24-70 CH Issue 6

Spira-trol

TM

Two-port Control Valves EN Standard LE, LF and LL DN15 to DN100 and ASME Standard LEA, LFA and LLA 1⁄2" to 4"
