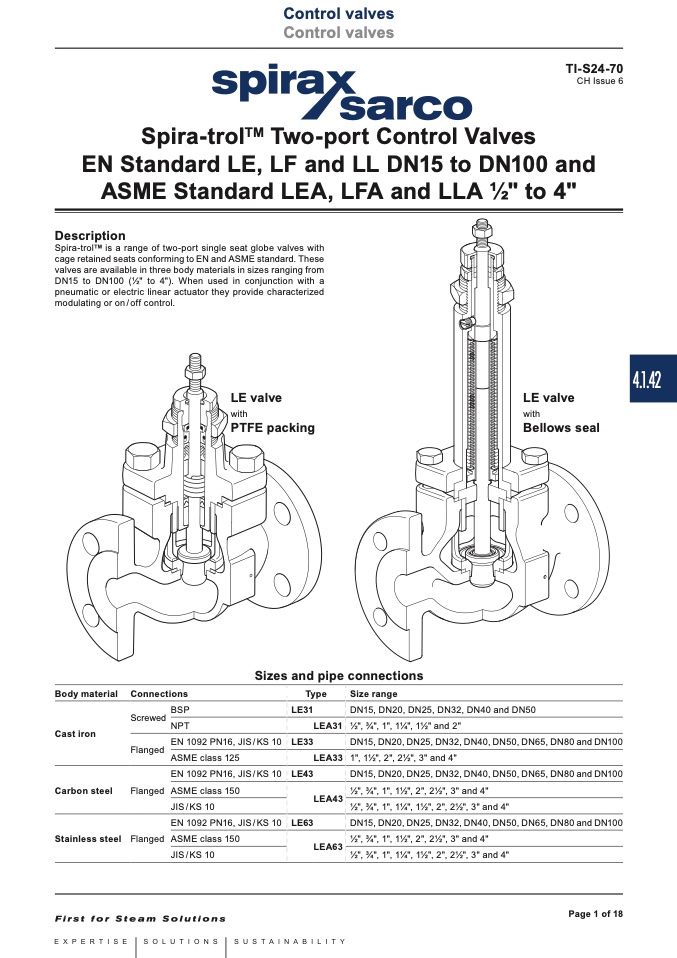

Description

Spira-trol

TM

is a range of two-port single seat globe valves with

cage retained seats conforming to EN and ASME standard. These

valves are available in three body materials in sizes ranging from

DN15 to DN100 (1⁄2" to 4"). When used in conjunction with a

pneumatic or electric linear actuator they provide characterized

modulating or on / off control.

Body material

Cast iron

Carbon steel

Stainless steel

Connections

Screwed

BSP

NPT

Flanged

EN 1092 PN16, JIS / KS 10

ASME class 125

EN 1092 PN16, JIS / KS 10

Flanged ASME class 150

JIS / KS 10

EN 1092 PN16, JIS / KS 10

Flanged ASME class 150

JIS / KS 10

Type

LE31

LEA31

LE33

LEA33

LE43

LEA43

LE63

LEA63

Size range

LE valve

with

PTFE packing

LE valve

with

Bellows seal

4.1.42

Control valves

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Control valves

© Copyright 2016

TI-S24-70

CH Issue 6

Spira-trol

TM

Two-port Control Valves

EN Standard LE, LF and LL DN15 to DN100 and

ASME Standard LEA, LFA and LLA

1⁄2" to 4"

Sizes and pipe connections

DN15, DN20, DN25, DN32, DN40 and DN50

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 and DN100

1", 11⁄2", 2", 21⁄2", 3" and 4"

DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 and DN100

1⁄2", 3⁄4", 1", 11⁄2", 2", 21⁄2", 3" and 4"

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2", 3" and 4"

DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 and DN100

1⁄2", 3⁄4", 1", 11⁄2", 2", 21⁄2", 3" and 4"

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2", 3" and 4"
