Flowmetering
Turbine flowmeters

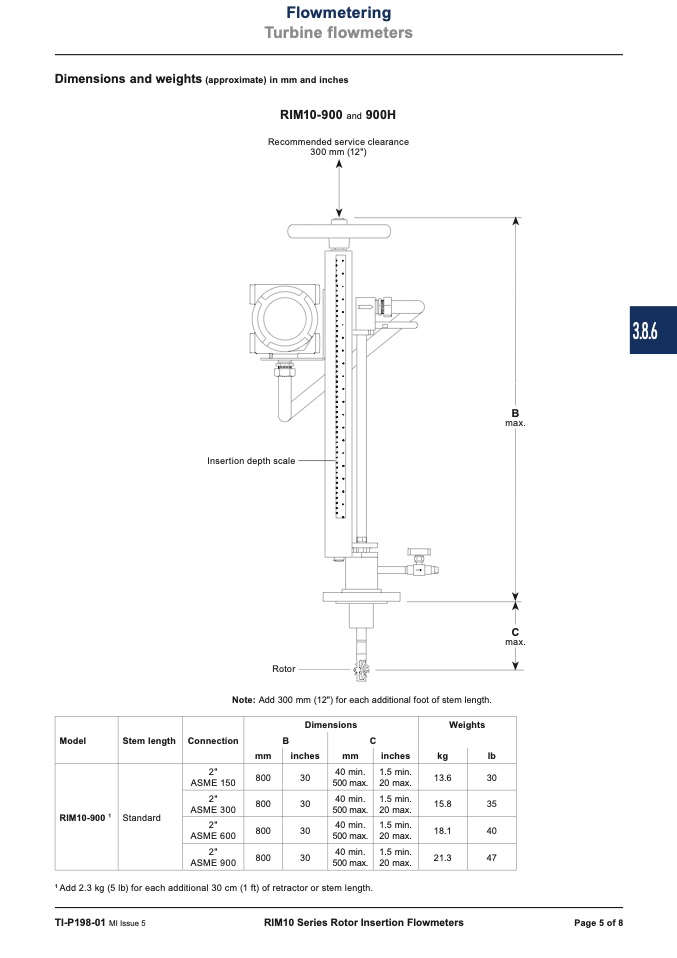

Dimensions and weights (approximate) in mm and inches
Model
RIM10-900
1
Stem length
Standard
Connection
B
C
1
Add 2.3 kg (5 lb) for each additional 30 cm
TI-P198-01 MI Issue 5
retractor or stem length.
2"
ASME
2"
ASME
2"
ASME
2"
ASME
150
300
600
900
mm
800
800
800
800
(1 ft) of
inches
30
30
30
30
mm
40 min.
500 max.
40 min.
500 max.
40 min.
500 max.
40 min.
500 max.
inches
1.5 min.
20 max.
1.5 min.
20 max.
1.5 min.
20 max.
1.5 min.
20 max.
Insertion depth scale
RIM10-900
and
900H
Recommended service clearance
300 mm (12")
Rotor
Note: Add 300 mm (12") for each additional foot of stem length.
Dimensions
Weights
kg
lb
13.6
30
15.8
35
18.1
40
21.3
47
RIM10 Series Rotor Insertion Flowmeters
Page 5 of 8
B
max.
C
max.
3.8.6
