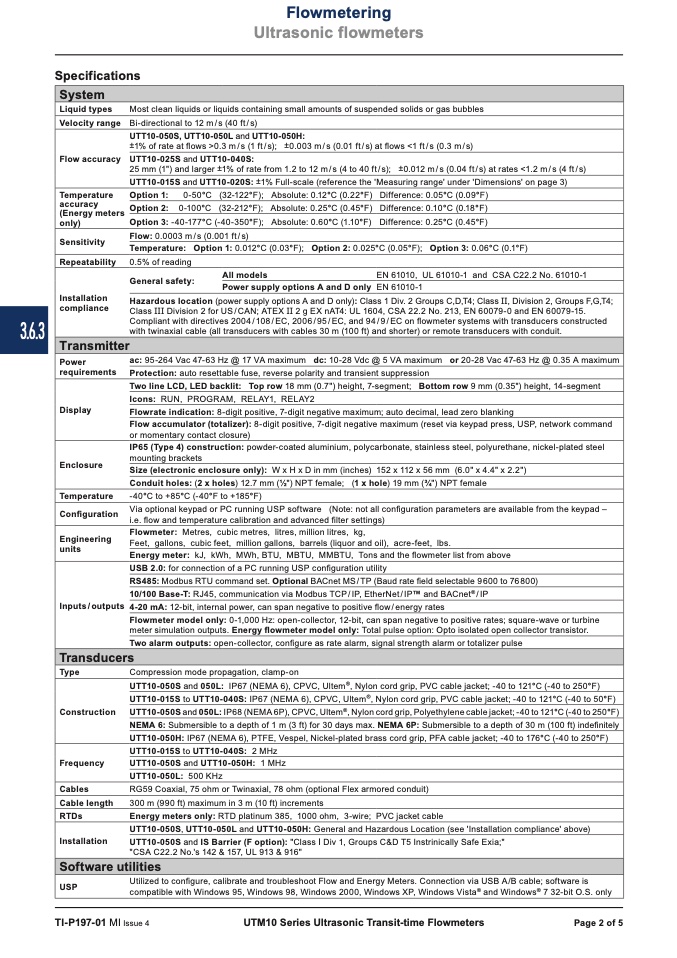

Flowmetering

Ultrasonic flowmeters

3.6.3

Specifications

System

Liquid types

Velocity range

Flow accuracy

Temperature

accuracy

(Energy meters

only)

Sensitivity

Repeatability

Installation

compliance

Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles

Bi-directional to 12 m / s (40 ft / s)

UTT10-050S, UTT10-050L and UTT10-050H:

±1% of rate at flows >0.3 m/s (1 ft/s); ±0.003 m/s (0.01 ft/s) at flows <1 ft/s (0.3 m/s)

UTT10-025S and UTT10-040S:

25 mm (1") and larger ±1% of rate from 1.2 to 12 m/s (4 to 40 ft/s); ±0.012 m/s (0.04 ft/s) at rates <1.2 m/s (4 ft/s)

UTT10-015S and UTT10-020S: ±1% Full-scale (reference the 'Measuring range' under 'Dimensions' on page 3)

Option 1: 0-50°C (32-122°F);

Option 2: 0-100°C (32-212°F);

Option 3: -40-177°C (-40-350°F);

Flow: 0.0003 m / s (0.001 ft / s)

Temperature: Option 1: 0.012°C (0.03°F);

Option 2: 0.025°C (0.05°F); Option 3: 0.06°C (0.1°F)

EN 61010, UL 61010-1 and CSA C22.2 No. 61010-1

Absolute: 0.12°C (0.22°F)

Absolute: 0.25°C (0.45°F)

Absolute: 0.60°C (1.10°F)

Difference: 0.05°C (0.09°F)

Difference: 0.10°C (0.18°F)

Difference: 0.25°C (0.45°F)

0.5% of reading

General safety:

All models

Power supply options A and D only EN 61010-1

Transmitter

Power

requirements

Display

Enclosure

Temperature

Configuration

Engineering

units

Inputs/outputs

ac: 95-264 Vac 47-63 Hz @ 17 VA maximum dc: 10-28 Vdc @ 5 VA maximum or 20-28 Vac 47-63 Hz @ 0.35 A maximum

Protection: auto resettable fuse, reverse polarity and transient suppression

Two line LCD, LED backlit: Top row 18 mm (0.7") height, 7-segment; Bottom row 9 mm (0.35") height, 14-segment

Icons: RUN, PROGRAM, RELAY1, RELAY2

Flowrate indication: 8-digit positive, 7-digit negative maximum; auto decimal, lead zero blanking

Flow accumulator (totalizer): 8-digit positive, 7-digit negative maximum (reset via keypad press, USP, network command

or momentary contact closure)

IP65 (Type 4) construction: powder-coated aluminium, polycarbonate, stainless steel, polyurethane, nickel-plated steel

mounting brackets

Size (electronic enclosure only): W x H x D in mm (inches) 152 x 112 x 56 mm (6.0" x 4.4" x 2.2")

Conduit holes: (2 x holes) 12.7 mm (1⁄2") NPT female; (1 x hole) 19 mm (3⁄4") NPT female

-40°C to +85°C (-40°F to +185°F)

Via optional keypad or PC running USP software (Note: not all configuration parameters are available from the keypad –

i.e. flow and temperature calibration and advanced filter settings)

Flowmeter: Metres, cubic metres, litres, million litres, kg,

Feet, gallons, cubic feet, million gallons, barrels (liquor and oil), acre-feet, lbs.

Energy meter: kJ, kWh, MWh, BTU, MBTU, MMBTU, Tons and the flowmeter list from above

USB 2.0: for connection of a PC running USP configuration utility

RS485: Modbus RTU command set. Optional BACnet MS/TP (Baud rate field selectable 9600 to 76800)

10/100 Base-T: RJ45, communication via Modbus TCP / IP, EtherNet / IPTM and BACnet

®

/ IP

4-20mA:12-bit,internalpower,canspannegativetopositiveflow/energyrates

Flowmeter model only: 0-1,000 Hz: open-collector, 12-bit, can span negative to positive rates; square-wave or turbine

meter simulation outputs. Energy flowmeter model only: Total pulse option: Opto isolated open collector transistor.

Two alarm outputs: open-collector, configure as rate alarm, signal strength alarm or totalizer pulse

Hazardous location (power supply options A and D only): Class 1 Div. 2 Groups C,D,T4; Class II, Division 2, Groups F,G,T4;

Class III Division 2 for US/CAN; ATEX II 2 g EX nAT4: UL 1604, CSA 22.2 No. 213, EN 60079-0 and EN 60079-15.

Compliant with directives 2004 / 108 / EC, 2006 / 95 / EC, and 94 / 9 / EC on flowmeter systems with transducers constructed

with twinaxial cable (all transducers with cables 30 m (100 ft) and shorter) or remote transducers with conduit.

Transducers

Type

Construction

Frequency

Cables

Cable length

RTDs

Installation

Compression mode propagation, clamp-on

UTT10-050S and 050L: IP67 (NEMA 6), CPVC, Ultem

®

, Nylon cord grip, PVC cable jacket; -40 to 121°C (-40 to 250°F)

UTT10-015S to UTT10-040S: IP67 (NEMA 6), CPVC, Ultem

®

, Nylon cord grip, PVC cable jacket; -40 to 121°C (-40 to 50°F)

UTT10-050S and 050L: IP68 (NEMA 6P), CPVC, Ultem

®

, Nylon cord grip, Polyethylene cable jacket; -40 to 121°C (-40 to 250°F)

NEMA 6: Submersible to a depth of 1 m (3 ft) for 30 days max. NEMA 6P: Submersible to a depth of 30 m (100 ft) indefinitely

UTT10-050H: IP67 (NEMA 6), PTFE, Vespel, Nickel-plated brass cord grip, PFA cable jacket; -40 to 176°C (-40 to 250°F)

UTT10-015S to UTT10-040S: 2 MHz

UTT10-050S and UTT10-050H: 1 MHz

UTT10-050L: 500 KHz

RG59 Coaxial, 75 ohm or Twinaxial, 78 ohm (optional Flex armored conduit)

300 m (990 ft) maximum in 3 m (10 ft) increments

Energy meters only: RTD platinum 385, 1000 ohm, 3-wire; PVC jacket cable

UTT10-050S, UTT10-050L and UTT10-050H: General and Hazardous Location (see 'Installation compliance' above)

UTT10-050S and IS Barrier (F option): "Class I Div 1, Groups C&D T5 Instrinically Safe Exia;"

"CSA C22.2 No.'s 142 & 157, UL 913 & 916"

Software utilities

USP

Utilized to configure, calibrate and troubleshoot Flow and Energy Meters. Connection via USB A/B cable; software is

compatible with Windows 95, Windows 98, Windows 2000, Windows XP, Windows Vista

®

and Windows

®

7 32-bit O.S. only

TI-P197-01 MI Issue 4

UTM10 Series Ultrasonic Transit-time Flowmeters

Page 2 of 5
