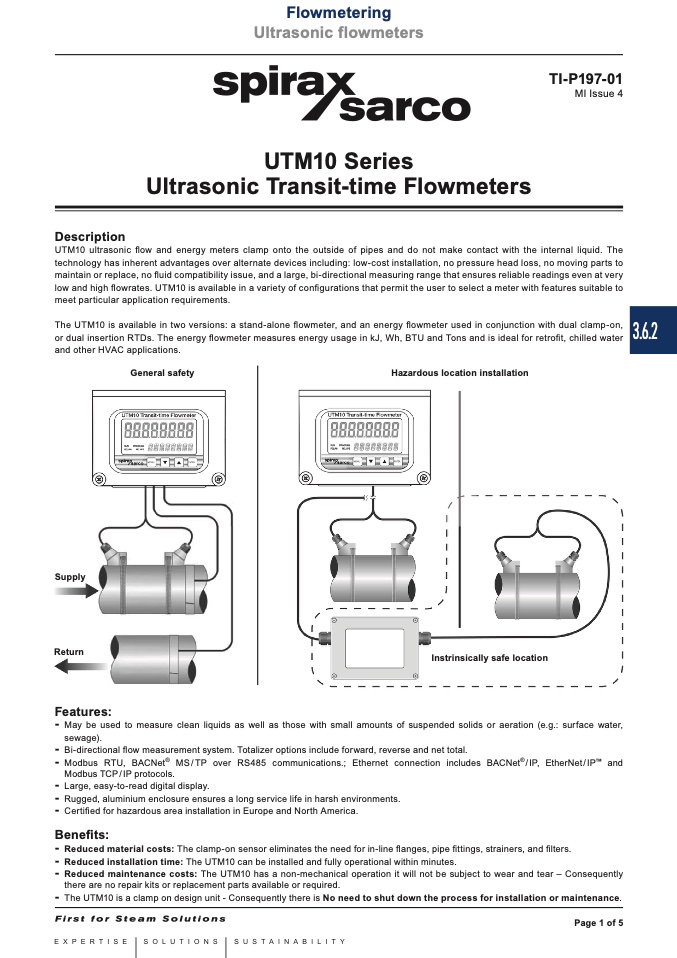

Flowmetering

Ultrasonic flowmeters

UTM10 Series

Ultrasonic Transit-time Flowmeters

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

TI-P197-01

MI Issue 4

Description

UTM10 ultrasonic flow and energy meters clamp onto the outside of pipes and do not make contact with the internal liquid. The

technology has inherent advantages over alternate devices including: low-cost installation, no pressure head loss, no moving parts to

maintain or replace, no fluid compatibility issue, and a large, bi-directional measuring range that ensures reliable readings even at very

low and high flowrates. UTM10 is available in a variety of configurations that permit the user to select a meter with features suitable to

meet particular application requirements.

The UTM10 is available in two versions: a stand-alone flowmeter, and an energy flowmeter used in conjunction with dual clamp-on,

or dual insertion RTDs. The energy flowmeter measures energy usage in kJ, Wh, BTU and Tons and is ideal for retrofit, chilled water

and other HVAC applications.

Supply

Return

Instrinsically safe location

General safety

Hazardous location installation

Features:

-

May be used to measure clean liquids as well as those with small amounts of suspended solids or aeration (e.g.: surface water,

MS / TP over RS485 communications.; Ethernet connection includes BACNet

®

/ IP, EtherNet / IP

TM

and

-

Large, easy-to-read digital display.

-

Rugged, aluminium enclosure ensures a long service life in harsh environments.

-

Certified for hazardous area installation in Europe and North America.

Benefits:

- Reduced material costs:

The clamp-on sensor eliminates the need for in-line flanges, pipe fittings, strainers, and filters.

- Reduced installation time:

The UTM10 can be installed and fully operational within minutes.

- Reduced maintenance costs:

The UTM10 has a non-mechanical operation it will not be subject to wear and tear – Consequently

there are no repair kits or replacement parts available or required.

-

The UTM10 is a clamp on design unit - Consequently there is No need to shut down the process for installation or maintenance.

sewage).

-

Bi-directional flow measurement system. Totalizer options include forward, reverse and net total.

-

Modbus RTU, BACNet

®

Modbus TCP/IP protocols.

Page 1 of 5

3.6.2
