Flowmetering

Flowmetering ancillaries

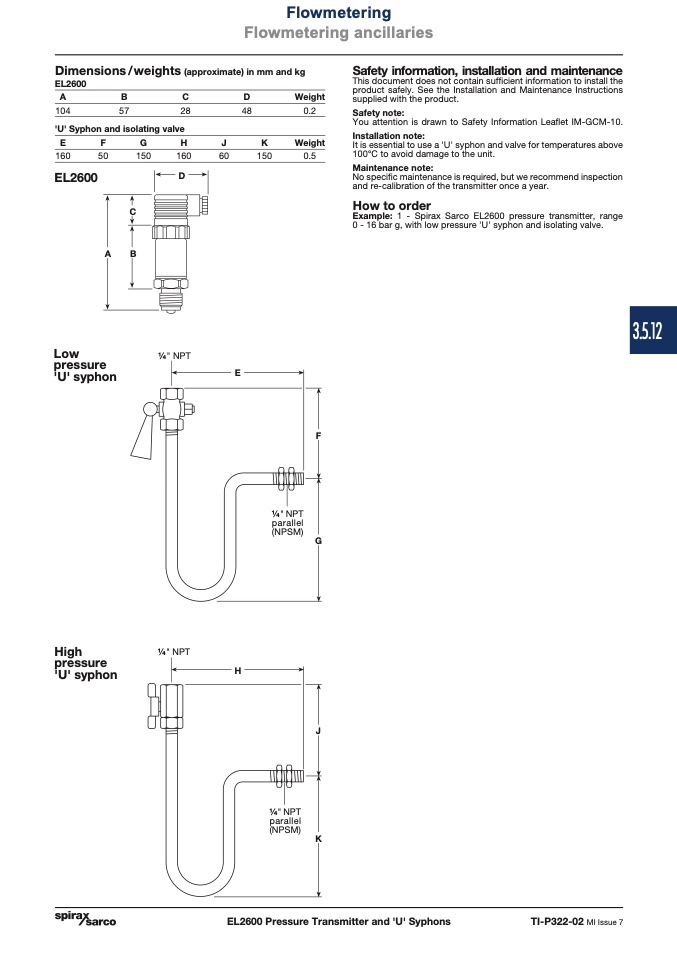

Dimensions / weights (approximate) in mm and kg

EL2600

A

B

C

D

Weight

104

57

28

48

0.2

'U' Syphon and isolating valve

E

F

G

H

J

K

Weight

Safety information, installation and maintenance

This document does not contain sufficient information to install the

product safely. See the Installation and Maintenance Instructions

supplied with the product.

Safety note:

You attention is drawn to Safety Information Leaflet IM-GCM-10.

Installation note:

It is essential to use a 'U' syphon and valve for temperatures above

100°C to avoid damage to the unit.

Maintenance note:

No specific maintenance is required, but we recommend inspection

and re-calibration of the transmitter once a year.

How to order

Example: 1 - Spirax Sarco EL2600 pressure transmitter, range

0 - 16 bar g, with low pressure 'U' syphon and isolating valve.

160

50

150

160

60

150

0.5

EL2600

C

A

B

Low

pressure

'U' syphon

D

1⁄4" NPT

E

F

1⁄4" NPT

parallel

(NPSM)

G

High

1⁄4" NPT

pressure

'U' syphon

H

J

1⁄4" NPT

parallel

(NPSM)

K

EL2600 Pressure Transmitter and 'U' Syphons

TI-P322-02 MI Issue 7

3.5.12
