Flowmetering

Flowmetering ancillaries

3.5.11

0-100

0-0.1

0-10

0-1.6

0-250

0-0.25

0-16

0-2.5

0-600

0-0.6

0-25

0-1

0-40

0-1.6

0-60

0-2.5

0-100*

0-4

0-160*

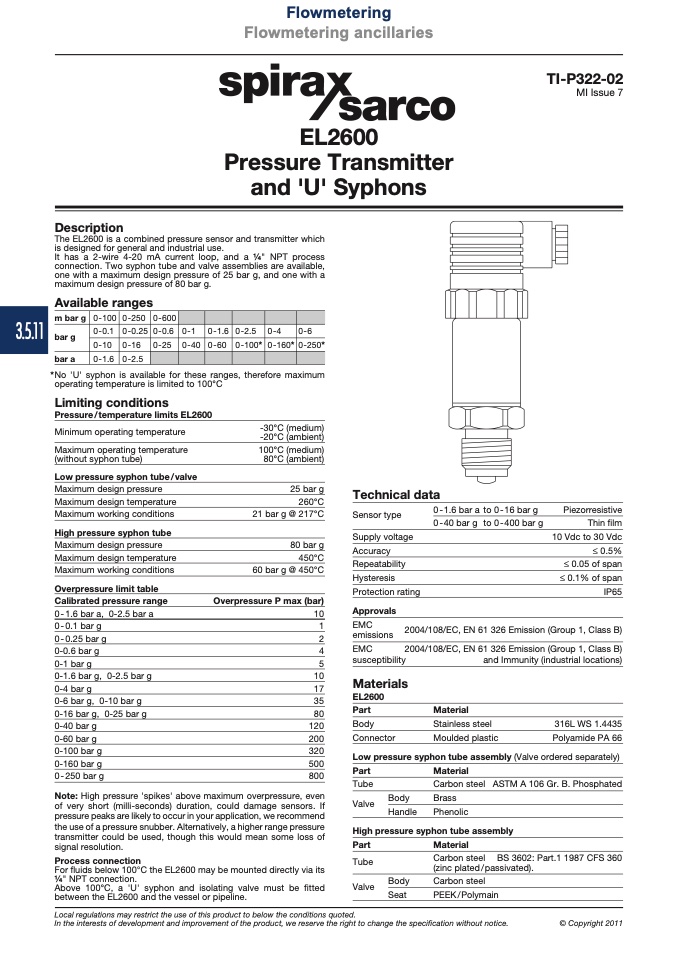

TI-P322-02

MI Issue 7

Description

The EL2600 is a combined pressure sensor and transmitter which

is designed for general and industrial use.

It has a 2-wire 4-20 mA current loop, and a 1⁄4" NPT process

connection. Two syphon tube and valve assemblies are available,

one with a maximum design pressure of 25 bar g, and one with a

maximum design pressure of 80 bar g.

EL2600

Pressure Transmitter

and 'U' Syphons

Available ranges

m bar g

bar g

bar a

0-6

0-250*

*No 'U' syphon is available for these ranges, therefore maximum

operating temperature is limited to 100°C

Limiting conditions

Pressure/temperature limits EL2600

Minimum operating temperature

Maximum operating temperature

(without syphon tube)

Low pressure syphon tube/valve

Maximum design pressure

Maximum design temperature

Maximum working conditions

High pressure syphon tube

Maximum design pressure

Maximum design temperature

Maximum working conditions

Overpressure limit table

Calibrated pressure range

0-1.6 bar a, 0-2.5 bar a

0-0.1 bar g

0-0.25 bar g

0-0.6 bar g

0-1 bar g

0-1.6 bar g, 0-2.5 bar g

0-4 bar g

0-6 bar g, 0-10 bar g

0-16 bar g, 0-25 bar g

0-40 bar g

0-60 bar g

0-100 bar g

0-160 bar g

0-250 bar g

-30°C (medium)

-20°C (ambient)

100°C (medium)

80°C (ambient)

25 bar g

260°C

21 bar g @ 217°C

80 bar g

450°C

60 bar g @ 450°C

Overpressure P max (bar)

10

1

2

4

5

10

17

35

80

120

200

320

500

800

Technical data

Sensor type

Supply voltage

Accuracy

Repeatability

Hysteresis

Protection rating

Approvals

0-1.6 bar a to 0-16 bar g

Piezorresistive

Thin film

10 Vdc to 30 Vdc

£ 0.5%

£ 0.05 of span

£ 0.1% of span

IP65

0-40 bar g

to 0-400 bar g

EMC

2004/108/EC, EN 61 326 Emission (Group 1, Class B)

emissions

EMC

2004/108/EC, EN 61 326 Emission (Group 1, Class B)

susceptibility

and Immunity (industrial locations)

Materials

EL2600

Part

Material

Body

Stainless steel

Connector

Moulded plastic

316L WS 1.4435

Polyamide PA 66

Low pressure syphon tube assembly (Valve ordered separately)

Part

Tube

Valve

Material

Carbon steel

Brass

Phenolic

ASTM A 106 Gr. B. Phosphated

Note: High pressure 'spikes' above maximum overpressure, even

of very short (milli-seconds) duration, could damage sensors. If

pressure peaks are likely to occur in your application, we recommend

the use of a pressure snubber. Alternatively, a higher range pressure

transmitter could be used, though this would mean some loss of

signal resolution.

Process connection

For fluids below 100°C the EL2600 may be mounted directly via its

1⁄4" NPT connection.

Above 100°C, a 'U' syphon and isolating valve must be fitted

between the EL2600 and the vessel or pipeline.

Body

Handle

High pressure syphon tube assembly

Part

Tube

Valve

Material

BS 3602: Part.1 1987 CFS 360

PEEK / Polymain

Carbon steel

(zinc plated/passivated).

Body

Seat

Carbon steel

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2011
