Company name

Address

Contact

Project reference

Notes

Option

List of equipment in each package option

1

M410 orifice plate and gaskets

2

M410 orifice plate and gaskets, M610 DP transmitter

3

M410 orifice plate and gaskets with carrier ring,

F50C isolation valves

4

M410 orifice plate and gaskets with carrier ring,

F50C isolation valves, M610 DP transmitter assembly

Option product code

3.4.3

Option

List of equipment in each package option

5

M410 orifice plate and gaskets, M610 DP transmitter

assembly, EL2600 pressure transmitter

6

M410 orifice plate and gaskets, M610 DP transmitter

assembly, EL2271 temperature transmitter

7

M410 orifice plate and gaskets, M610 DP transmitter

assembly, EL2600 pressure transmitter,

EL2271 temperature transmitter

8

M410 orifice plate and gaskets with carrier ring,

F50C isolation valves, M610 DP transmitter assembly,

EL2600 pressure transmitter

9

M410 orifice plate and gaskets with carrier ring,

F50C isolation valves, M610 DP transmitter assembly,

EL2271 temperature transmitter

10

M410 orifice plate and gaskets with carrier ring,

F50C isolation valves, M610 DP transmitter assembly,

EL2600 pressure transmitter,

EL2271 temperature transmitter

Option product code

Type of fluid (e.g., steam, air, water etc)

Min. value

Normal value

Max. value

Units

Operating

pressure

Operating

temperature

Estimated

rate of flow

Value

Units

Nominal line size

Line inside diameter

Line schedule (if known)

N/A

Flange specification

N/A

Number of straight pipe diameters

available upstream

N/A

Number of straight pipe diameters

available downstream

N/A

Pipe material

N/A

Wall

mounted version

Panel

mounted version

M750 local display

N/A 99/264 Vac

M850 flow computer

24 Vdc 99/264 Vac

Flowmetering

Orifice plate flowmeters

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

TI-P176-04

MI Issue 7

The Spirax Sarco oriface plate flowmetering system is available in a

number of options, at least one of which will suit the needs of a

customer. Options 1 to 4 are for simple systems where automatic

density compensation is not required. These are shown at the top of

the next column...simply tick the option that meets your needs.

Options for use with flowcomputers that DO NOT include density

compensation:

Options 5 to 10 include equipment that allows automatic density

compensation for maximum accuracy. These are shown

below...simply tick the option that meets your needs.

Options for use with flowcomputers that DO include density

compensation:

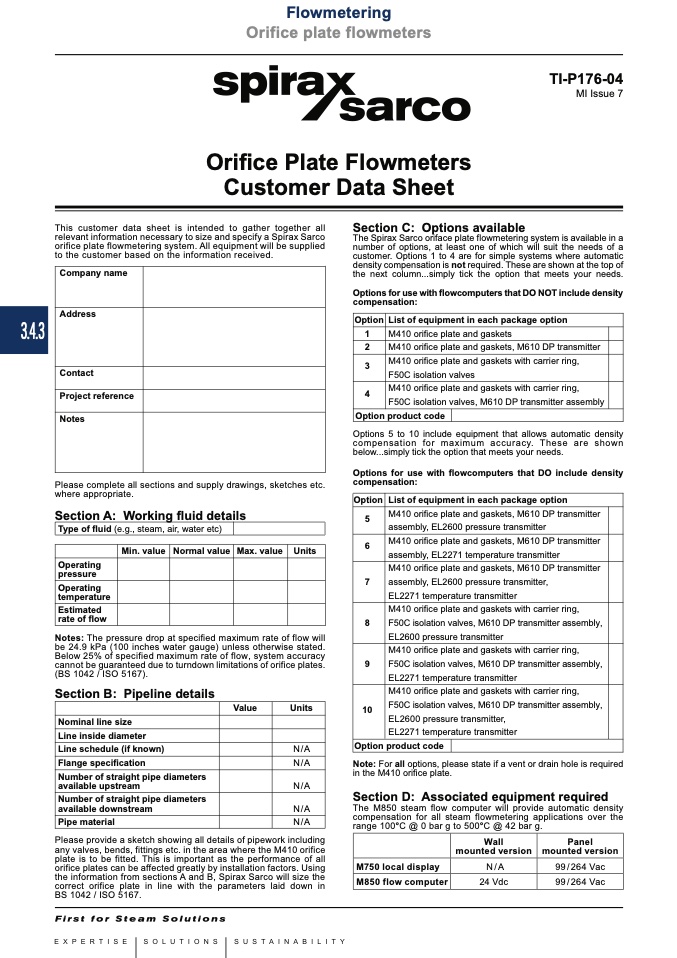

Orifice Plate Flowmeters

Customer Data Sheet

This customer data sheet is intended to gather together all

relevant information necessary to size and specify a Spirax Sarco

orifice plate flowmetering system. All equipment will be supplied

to the customer based on the information received.

Section C: Options available

Please complete all sections and supply drawings, sketches etc.

where appropriate.

Section A: Working fluid details

Notes: The pressure drop at specified maximum rate of flow will

be 24.9 kPa (100 inches water gauge) unless otherwise stated.

Below 25% of specified maximum rate of flow, system accuracy

cannot be guaranteed due to turndown limitations of orifice plates.

(BS 1042 / ISO 5167).

Section B: Pipeline details

Please provide a sketch showing all details of pipework including

any valves, bends, fittings etc. in the area where the M410 orifice

plate is to be fitted. This is important as the performance of all

orifice plates can be affected greatly by installation factors. Using

the information from sections A and B, Spirax Sarco will size the

correct orifice plate in line with the parameters laid down in

BS 1042 / ISO 5167.

Note: For all options, please state if a vent or drain hole is required

in the M410 orifice plate.

Section D: Associated equipment required

The M850 steam flow computer will provide automatic density

compensation for all steam flowmetering applications over the

range 100°C @ 0 bar g to 500°C @ 42 bar g.
