Flowmetering

Gilflo and ILVA flowmeters

How to order

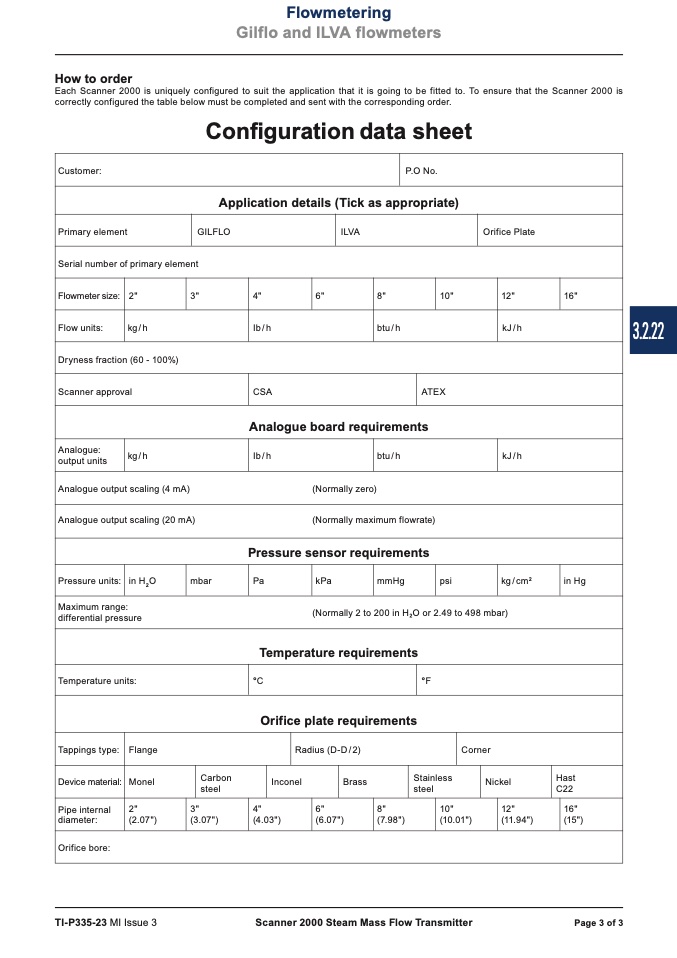

Each Scanner 2000 is uniquely configured to suit the application that it is going to be fitted to. To ensure that the Scanner 2000 is

correctly configured the table below must be completed and sent with the corresponding order.

Configuration data sheet

Customer:

P.O No.

Application details (Tick as appropriate)

Primary element

GILFLO ILVA

Orifice Plate

Serial number of primary element

Flowmeter size: 2"

3"

4" 6" 8"

10" 12"

16"

Flow units:

kg/h

Ib/h

btu/h

kJ/h

Dryness fraction (60 - 100%)

Scanner approval CSA

ATEX

Analogue board requirements

Analogue:

output units

kg/h

Ib/h btu/h

kJ/h

Analogue output scaling (4 mA)

(Normally zero)

Analogue output scaling (20 mA)

(Normally maximum flowrate)

Pressure sensor requirements

Pressure units: in H

2

O mbar

Pa kPa mmHg psi kg/cm

2

in Hg

Maximum range:

differential pressure

(Normally 2 to 200 in H

2

O or 2.49 to 498 mbar)

Temperature requirements

Temperature units: °C

°F

Orifice plate requirements

Tappings type:

Flange Radius (D-D / 2)

Corner

Device material: Monel Carbon

steel

Inconel Brass

Stainless

steel

Nickel

Hast

C22

Pipe internal

diameter:

2"

(2.07")

3"

(3.07")

4"

(4.03")

6"

(6.07")

8"

(7.98")

10"

(10.01")

12"

(11.94")

16"

(15")

Orifice bore:

TI-P335-23 MI Issue 3

Scanner 2000 Steam Mass Flow Transmitter

Page 3 of 3

3.2.22
