3.2.21

244

8

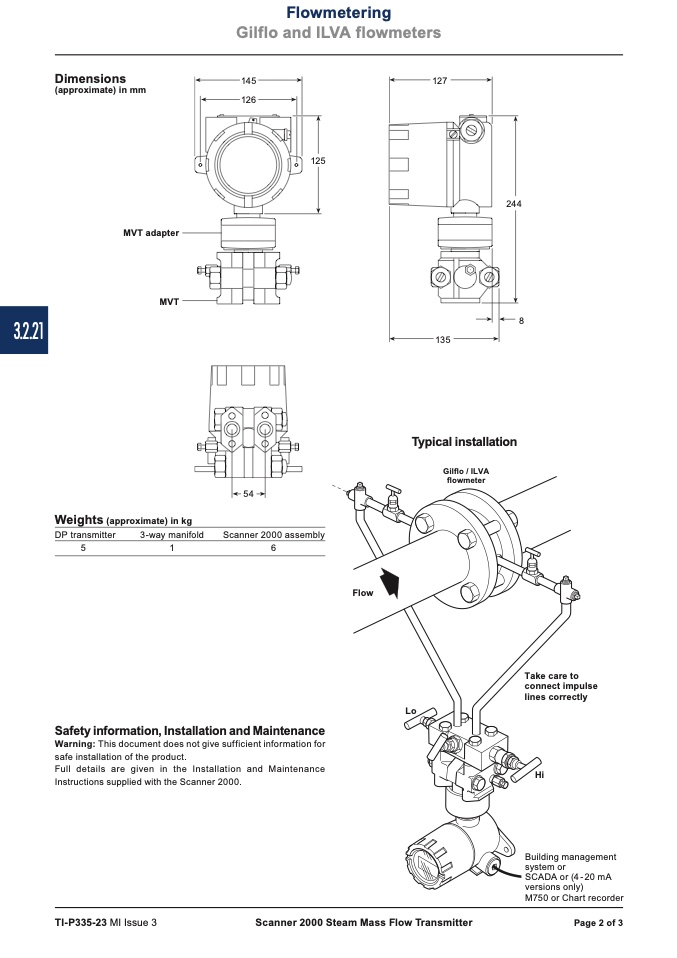

Dimensions

145

127

(approximate) in mm

MVT adapter

MVT

126

Weights (approximate) in kg

DP transmitter

3-way manifold

Scanner 2000 assembly

5

1

6

Safety information, Installation and Maintenance

Warning: This document does not give sufficient information for

safe installation of the product.

Full details are given in the Installation and Maintenance

Instructions supplied with the Scanner 2000.

TI-P335-23 MI Issue 3

Scanner 2000 Steam Mass Flow Transmitter

Page 2 of 3

Flowmetering

Gilflo and ILVA flowmeters

54

125

Flow

Lo

Take care to

connect impulse

lines correctly

Hi

Building management

system or

SCADA or (4-20 mA

versions only)

M750 or Chart recorder

135

Typical installation

Gilflo / ILVA

flowmeter
