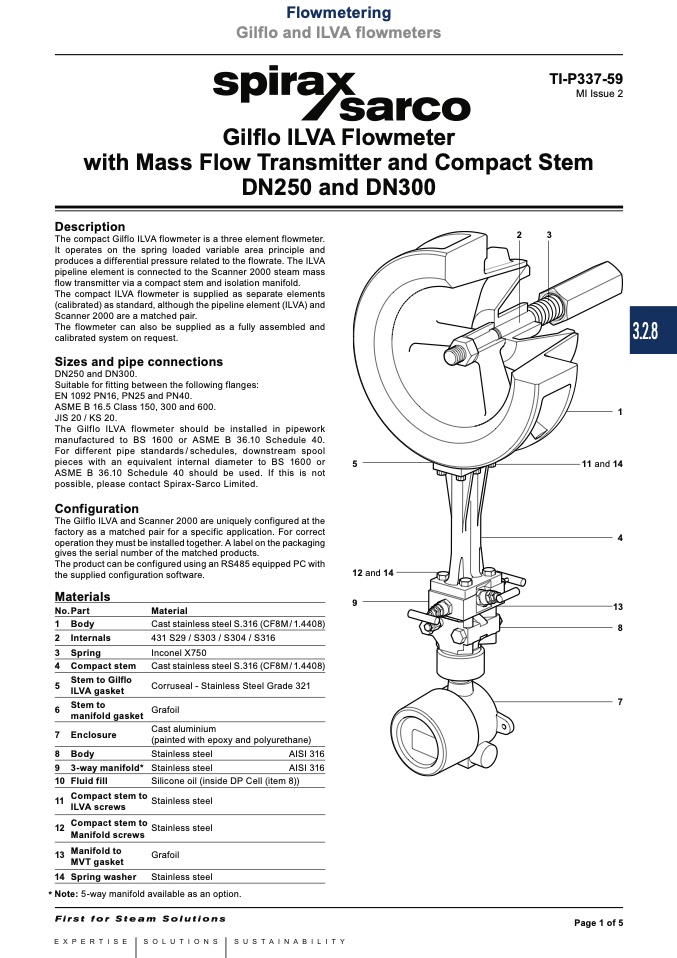

Flowmetering

Gilflo ILVA Flowmeter

with Mass Flow Transmitter and Compact Stem

DN250 and DN300

Gilflo and ILVA flowmeters

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2013

TI-P337-59

MI Issue 2

Description

The compact Gilflo ILVA flowmeter is a three element flowmeter.

It operates on the spring loaded variable area principle and

produces a differential pressure related to the flowrate. The ILVA

pipeline element is connected to the Scanner 2000 steam mass

flow transmitter via a compact stem and isolation manifold.

The compact ILVA flowmeter is supplied as separate elements

(calibrated) as standard, although the pipeline element (ILVA) and

Scanner 2000 are a matched pair.

The flowmeter can also be supplied as a fully assembled and

calibrated system on request.

Sizes and pipe connections

DN250 and DN300.

Suitable for fitting between the following flanges:

EN 1092 PN16, PN25 and PN40.

ASME B 16.5 Class 150, 300 and 600.

JIS 20 / KS 20.

The Gilflo ILVA flowmeter should be installed in pipework

manufactured to BS 1600 or ASME B 36.10 Schedule 40.

For different pipe standards/schedules, downstream spool

pieces with an equivalent internal diameter to BS 1600 or

ASME B 36.10 Schedule 40 should be used. If this is not

possible, please contact Spirax-Sarco Limited.

Configuration

The Gilflo ILVA and Scanner 2000 are uniquely configured at the

factory as a matched pair for a specific application. For correct

operation they must be installed together. A label on the packaging

gives the serial number of the matched products.

The product can be configured using an RS485 equipped PC with

the supplied configuration software.

2

3

Materials

No.Part

1 Body

2 Internals

3 Spring

4 Compact stem

5

Stem to Gilflo

ILVA gasket

6

Stem to

manifold gasket

7 Enclosure

8 Body

9 3-way manifold*

10 Fluid fill

11

Compact stem to

ILVA screws

12

Compact stem to

Manifold screws

13

Manifold to

MVT gasket

14 Spring washer

* Note: 5-way manifold available as an option.

5

12 and 14

9

1

11 and 14

4

13

8

7

Material

Cast stainless steel S.316 (CF8M / 1.4408)

431S29/S303/S304/S316

Inconel X750

Cast stainless steel S.316 (CF8M / 1.4408)

Corruseal - Stainless Steel Grade 321

Grafoil

Cast aluminium

(painted with epoxy and polyurethane)

Stainless steel

AISI 316

Stainless steel

AISI 316

Silicone oil (inside DP Cell (item 8))

Stainless steel

Stainless steel

Grafoil

Stainless steel

Page 1 of 5
