Heat load (kW)

Min.

Max.

Type

Valve

actuation

Maximum dimensions

H

L

W

Piping connections DN

Steam

Water

Condensate

50 550

EHHCC1

EL or PN

1321

1281

684

DN50 DN50 DN15

550 1 500

EHHCC2 EL or PN

1414 1420

834 DN100 DN100

DN20 or

DN25

1 500 2 500

EHHCC3

EL or PN

1414

1706

834

DN100 DN100

DN20 or

DN25

10.2.7

Heat transfer solutions

Heat exchangers

Pipework

All pipework is correctly sized for the application and is fabricated using modern welding techniques, approved welders and weld procedures.

Flanged products are used for reliability and easy maintenance.

Electrics and pneumatics

All control equipment is pre-wired and piped ready for connection to the air supply and power source.

Electrical supply

Actuators

Support frame

Power supply

Supply fuse

Electric

Pneumatic

110-240 Vac / 50-60 Hz

5A (T)

24 Vac / 50-60Hz

4 to 6 bar g

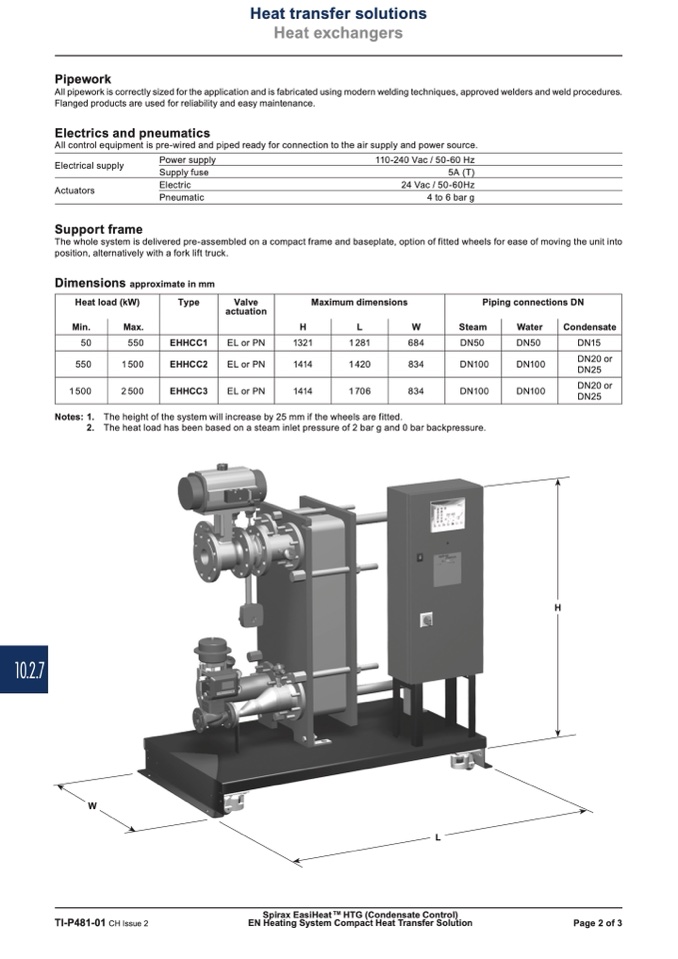

The whole system is delivered pre-assembled on a compact frame and baseplate, option of fitted wheels for ease of moving the unit into

position, alternatively with a fork lift truck.

Dimensions approximate in mm

Notes: 1.

2.

The height of the system will increase by 25 mm if the wheels are fitted.

The heat load has been based on a steam inlet pressure of 2 bar g and 0 bar backpressure.

H

W

L

Spirax EasiHeat

TM

HTG (Condensate Control)

TI-P481-01 CH Issue 2

EN Heating System Compact Heat Transfer Solution

Page 2 of 3
