Heat transfer solutions

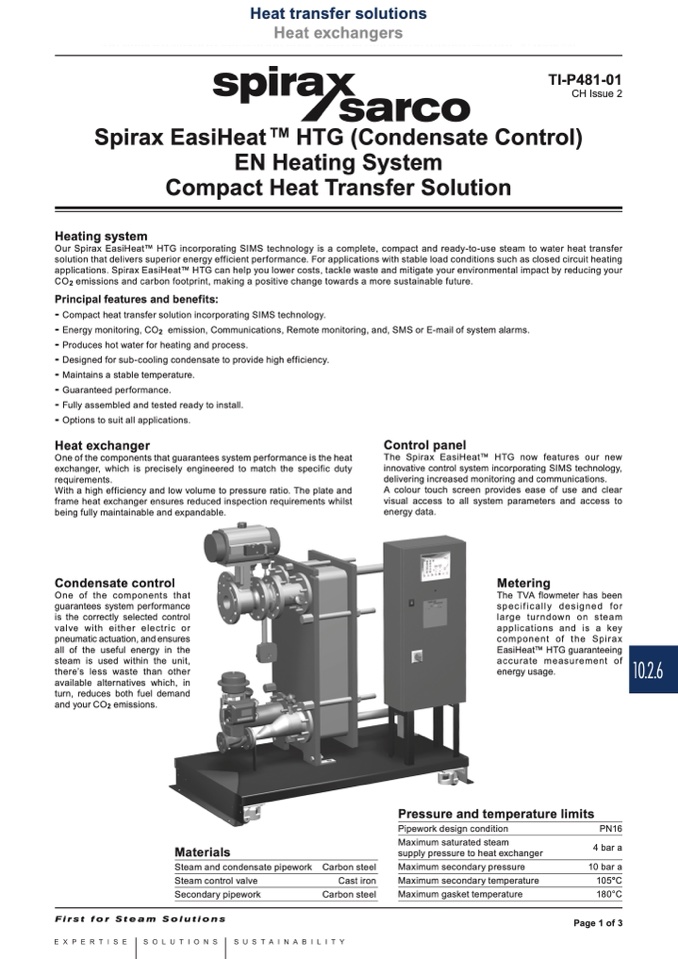

Spirax EasiHeat

TM

HTG (Condensate Control)

EN Heating System

Compact Heat Transfer Solution

Heating system

Our Spirax EasiHeatTM HTG incorporating SIMS technology is a complete, compact and ready-to-use steam to water heat transfer

solution that delivers superior energy efficient performance. For applications with stable load conditions such as closed circuit heating

applications. Spirax EasiHeatTM HTG can help you lower costs, tackle waste and mitigate your environmental impact by reducing your

CO2 emissions and carbon footprint, making a positive change towards a more sustainable future.

Principal features and benefits:

-

Compact heat transfer solution incorporating SIMS technology.

-

Energy monitoring, CO2 emission, Communications, Remote monitoring, and, SMS or E-mail of system alarms.

-

Produces hot water for heating and process.

-

Designed for sub-cooling condensate to provide high efficiency.

-

Maintains a stable temperature.

-

Guaranteed performance.

-

Fully assembled and tested ready to install.

-

Options to suit all applications.

Heat exchangers

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

TI-P481-01

CH Issue 2

Heat exchanger

One of the components that guarantees system performance is the heat

exchanger, which is precisely engineered to match the specific duty

requirements.

With a high efficiency and low volume to pressure ratio. The plate and

frame heat exchanger ensures reduced inspection requirements whilst

being fully maintainable and expandable.

Control panel

The Spirax EasiHeatTM HTG now features our new

innovative control system incorporating SIMS technology,

delivering increased monitoring and communications.

A colour touch screen provides ease of use and clear

visual access to all system parameters and access to

energy data.

Metering

The TVA flowmeter has been

specifically designed for

large turndown on steam

applications and is a key

component of the Spirax

EasiHeatTM HTG guaranteeing

accurate measurement of

energy usage.

Condensate control

One of the components that

guarantees system performance

is the correctly selected control

valve with either electric or

pneumatic actuation, and ensures

all of the useful energy in the

steam is used within the unit,

there’s less waste than other

available alternatives which, in

turn, reduces both fuel demand

and your CO2 emissions.

Materials

Steam and condensate pipework

Steam control valve

Secondary pipework

Pressure and temperature limits

Pipework design condition

Maximum saturated steam

supply pressure to heat exchanger

Maximum secondary pressure

Maximum secondary temperature

Maximum gasket temperature

PN16

Carbon steel

Cast iron
