ISO 9001

Connection

type

Flanged PN16

Flanged PN16

Flanged PN16

Flanged PN16

Flanged PN16

Push fit for nylon pipe

Flanged PN16

10.1.15

Heat transfer solutions

Clean steam generators

TI-P486-12

CH Issue 1

Cert. No. LRQ 0963008

CSM-PD

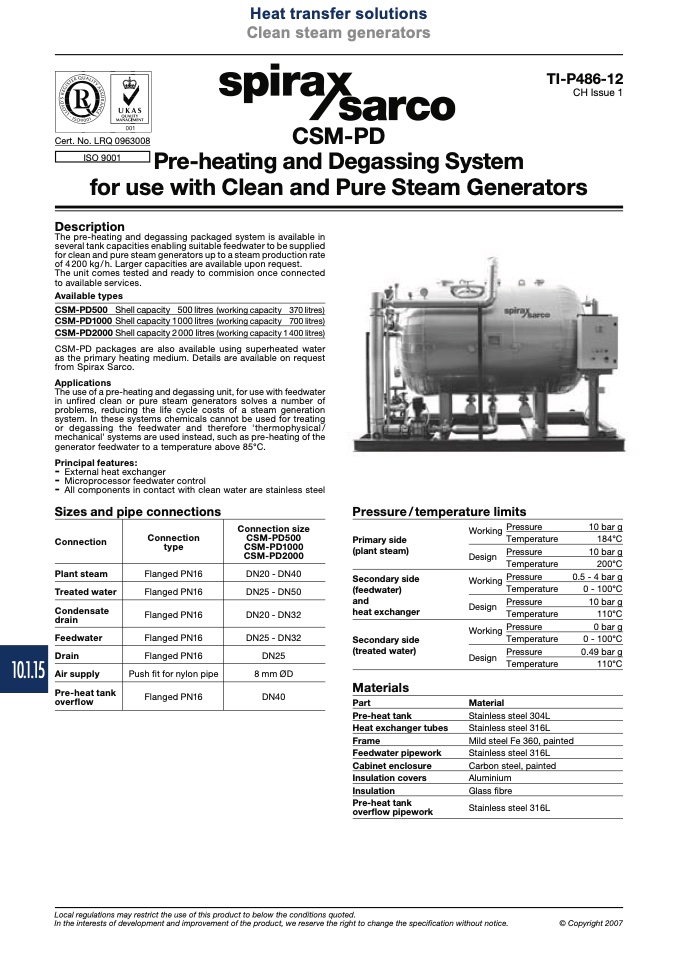

Pre-heating and Degassing System

for use with Clean and Pure Steam Generators

Description

The pre-heating and degassing packaged system is available in

several tank capacities enabling suitable feedwater to be supplied

for clean and pure steam generators up to a steam production rate

of 4200 kg/h. Larger capacities are available upon request.

The unit comes tested and ready to commision once connected

to available services.

Available types

CSM-PD500 Shell capacity 500 litres (working capacity 370 litres)

CSM-PD1000 Shell capacity 1000 litres (working capacity 700 litres)

CSM-PD2000 Shell capacity 2 000 litres (working capacity 1 400 litres)

CSM-PD packages are also available using superheated water

as the primary heating medium. Details are available on request

from Spirax Sarco.

Applications

The use of a pre-heating and degassing unit, for use with feedwater

in unfired clean or pure steam generators solves a number of

problems, reducing the life cycle costs of a steam generation

system. In these systems chemicals cannot be used for treating

or degassing the feedwater and therefore 'thermophysical/

mechanical' systems are used instead, such as pre-heating of the

generator feedwater to a temperature above 85°C.

Principal features:

- External heat exchanger

- Microprocessor feedwater control

- All components in contact with clean water are stainless steel

Sizes and pipe connections

Connection

Plant steam

Treated water

Condensate

drain

Feedwater

Drain

Air supply

Pre-heat tank

overflow

Pressure / temperature limits

Connection size

CSM-PD500

CSM-PD1000

CSM-PD2000

DN20 - DN40

DN25 - DN50

DN20 - DN32

DN25 - DN32

DN25

8 mm ØD

DN40

Primary side

(plant steam)

Secondary side

(feedwater)

and

heat exchanger

Secondary side

(treated water)

Materials

Part

Pre-heat tank

Heat exchanger tubes

Frame

Feedwater pipework

Cabinet enclosure

Insulation covers

Insulation

Pre-heat tank

overflow pipework

Working

Pressure

Temperature

Design

Pressure

Temperature

Working

Pressure

Temperature

Design

Pressure

Temperature

Working

Pressure

Temperature

Design

Pressure

Temperature

Material

10 bar g

184°C

10 bar g

200°C

0.5 - 4 bar g

0 - 100°C

10 bar g

110°C

0 bar g

0 - 100°C

0.49 bar g

110°C

Stainless steel 304L

Stainless steel 316L

Mild steel Fe 360, painted

Stainless steel 316L

Carbon steel, painted

Aluminium

Glass fibre

Stainless steel 316L

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
