Heat transfer solutions
Clean steam generators
ISO 9001
TI-P486-13
CH Issue 1
Cert. No. LRQ 0963008
CSM-K

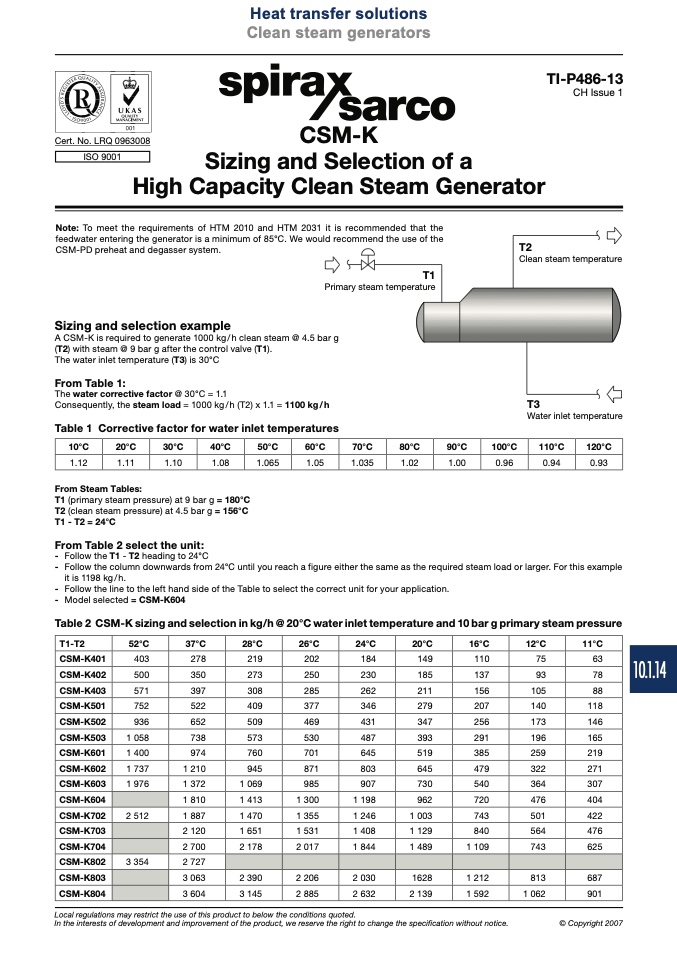

Sizing and Selection of a
High Capacity Clean Steam Generator
Note: To meet the requirements of HTM 2010 and HTM 2031 it is recommended that the
feedwater entering the generator is a minimum of 85°C. We would recommend the use of the
CSM-PD preheat and degasser system.
T2
Clean steam temperature
Sizing and selection example
A CSM-K is required to generate 1000 kg/h clean steam @ 4.5 bar g
(T2) with steam @ 9 bar g after the control valve (T1).
The water inlet temperature (T3) is 30°C
T1
Primary steam temperature
From Table 1:
The water corrective factor @ 30°C = 1.1
Consequently, the steam load = 1000 kg/h (T2) x 1.1 = 1100 kg/h
T3
Table 1 Corrective factor for water inlet temperatures
From Steam Tables:
T1 (primary steam pressure) at 9 bar g = 180°C
T2 (clean steam pressure) at 4.5 bar g = 156°C
T1 - T2 = 24°C
Water inlet temperature
10°C 20°C 30°C 40°C 50°C 60°C 70°C 80°C 90°C 100°C 110°C 120°C
1.12 1.11 1.10 1.08 1.065 1.05 1.035 1.02 1.00 0.96 0.94 0.93
From Table 2 select the unit:
- Follow the T1 - T2 heading to 24°C
- Followthecolumndownwardsfrom24°Cuntilyoureachafigureeitherthesameastherequiredsteamloadorlarger.Forthisexample
it is 1198 kg/h.
- Follow the line to the left hand side of the Table to select the correct unit for your application.
- Model selected = CSM-K604
Table 2 CSM-K sizing and selection in kg/h @ 20°C water inlet temperature and 10 bar g primary steam pressure
T1-T2
52°C 37°C
28°C
26°C
24°C
20°C
16°C
12°C 11°C
CSM-K401
403 278
219
202
184
149
110
75 63
CSM-K402
500 350
273
250
230
185
137
93 78
CSM-K403 571 397
308 285
262 211
156 105 88
CSM-K501
752 522
409
377
346
279
207
140 118
CSM-K502
936 652
509
469
431
347
256
173 146
CSM-K503
1 058 738
573
530
487
393
291
196 165
CSM-K601
1 400 974
760
701
645
519
385
259 219
CSM-K602
1 737 1 210
945
871
803
645
479
322 271
CSM-K603
1 976 1 372
1 069
985
907
730
540
364 307
CSM-K604 1 810
1 413
1 300
1 198
962
720
476 404
CSM-K702 2 512 1 887
1 470 1 355
1 246 1 003
743 501 422
CSM-K703 2 120
1 651
1 531
1 408
1 129
840
564 476
CSM-K704 2 700
2 178
2 017
1 844
1 489
1 109
743 625
CSM-K802 3 354 2 727
CSM-K803
3 063
2 390 2 206
2 030 1628
1 212 813 687
CSM-K804 3 604
3 145
2 885
2 632
2 139
1 592
1 062 901
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2007
10.1.14
