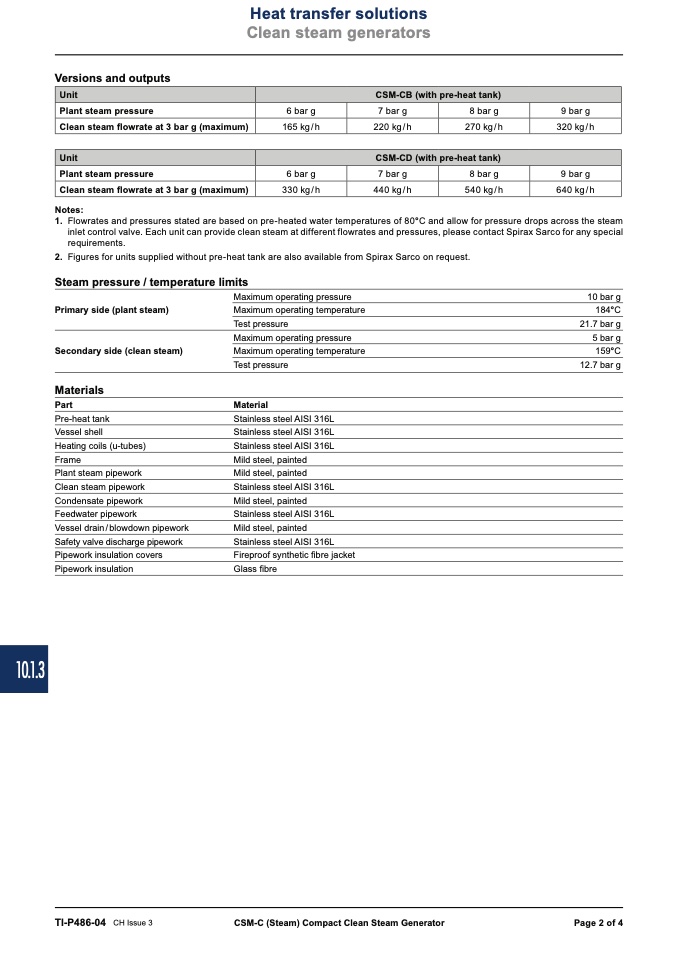

Heat transfer solutions

Clean steam generators

Unit

CSM-CB (with pre-heat tank)

Plant steam pressure

6 bar g 7 bar g 8 bar g 9 bar g

Clean steam flowrate at 3 bar g (maximum)

165 kg/h 220 kg/h 270 kg/h 320 kg/h

Unit

CSM-CD (with pre-heat tank)

Plant steam pressure

6 bar g 7 bar g 8 bar g 9 bar g

Clean steam flowrate at 3 bar g (maximum) 330 kg/h 440 kg/h 540 kg/h 640 kg/h

10.1.3

Versions and outputs

Notes:

1. Flowrates and pressures stated are based on pre-heated water temperatures of 80°C and allow for pressure drops across the steam

inlet control valve. Each unit can provide clean steam at different flowrates and pressures, please contact Spirax Sarco for any special

requirements.

2. Figures for units supplied without pre-heat tank are also available from Spirax Sarco on request.

Steam pressure / temperature limits

Primary side (plant steam)

Secondary side (clean steam)

Materials

Part

Pre-heat tank

Vessel shell

Heating coils (u-tubes)

Frame

Plant steam pipework

Clean steam pipework

Condensate pipework

Feedwater pipework

Vessel drain/blowdown pipework

Safety valve discharge pipework

Pipework insulation covers

Pipework insulation

Maximum operating pressure

Maximum operating temperature

Test pressure

Maximum operating pressure

Maximum operating temperature

Test pressure

Material

Stainless steel AISI 316L

Stainless steel AISI 316L

Stainless steel AISI 316L

Mild steel, painted

Mild steel, painted

Stainless steel AISI 316L

Mild steel, painted

Stainless steel AISI 316L

Mild steel, painted

Stainless steel AISI 316L

Fireproof synthetic fibre jacket

Glass fibre

10 bar g

184°C

21.7 bar g

5 bar g

159°C

12.7 bar g

TI-P486-04 CH Issue 3

CSM-C (Steam) Compact Clean Steam Generator

Page 2 of 4
