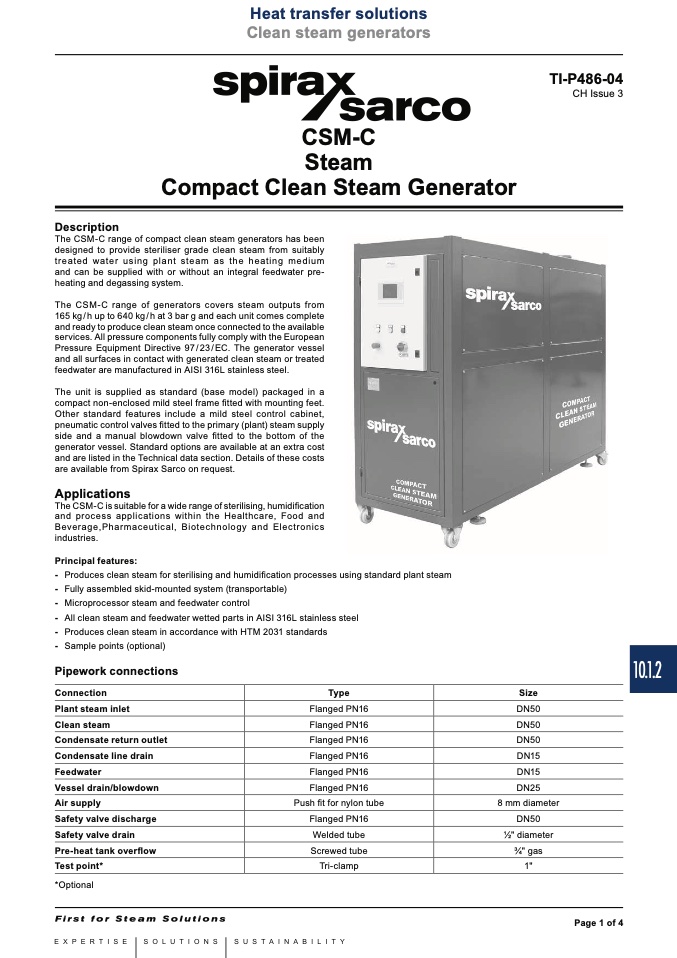

Spirax Sarco - Catalogo Agosto 2017

Heat transfer solutions

Clean steam generators

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

TI-P486-04

CH Issue 3

CSM-C

Steam

Compact Clean Steam Generator

Description

The CSM-C range of compact clean steam generators has been

designed to provide steriliser grade clean steam from suitably

treated water using plant steam as the heating medium

and can be supplied with or without an integral feedwater pre-

heating and degassing system.

The CSM-C range of generators covers steam outputs from

165 kg/h up to 640 kg/h at 3 bar g and each unit comes complete

and ready to produce clean steam once connected to the available

services. All pressure components fully comply with the European

Pressure Equipment Directive 97/23/EC. The generator vessel

and all surfaces in contact with generated clean steam or treated

feedwater are manufactured in AISI 316L stainless steel.

The unit is supplied as standard (base model) packaged in a

compact non-enclosed mild steel frame fitted with mounting feet.

Other standard features include a mild steel control cabinet,

pneumatic control valves fitted to the primary (plant) steam supply

side and a manual blowdown valve fitted to the bottom of the

generator vessel. Standard options are available at an extra cost

and are listed in the Technical data section. Details of these costs

are available from Spirax Sarco on request.

Applications

The CSM-C is suitable for a wide range of sterilising, humidification

and process applications within the Healthcare, Food and

Beverage,Pharmaceutical, Biotechnology and Electronics

industries.

Principal features:

- Produces clean steam for sterilising and humidification processes using standard plant steam

- Fully assembled skid-mounted system (transportable)

- Microprocessor steam and feedwater control

- All clean steam and feedwater wetted parts in AISI 316L stainless steel

- Produces clean steam in accordance with HTM 2031 standards

- Sample points (optional)

Pipework connections

Connection

Plant steam inlet

Clean steam

Condensate return outlet

Condensate line drain

Feedwater

Vessel drain/blowdown

Air supply

Safety valve discharge

Safety valve drain

Pre-heat tank overflow

Test point*

*Optional

Size

DN50

DN15

DN25

8 mm diameter

DN50

1⁄2" diameter

3⁄4" gas

Type

Flanged PN16

Push fit for nylon tube

Flanged PN16

Welded tube

Screwed tube

Tri-clamp

Page 1 of 4
