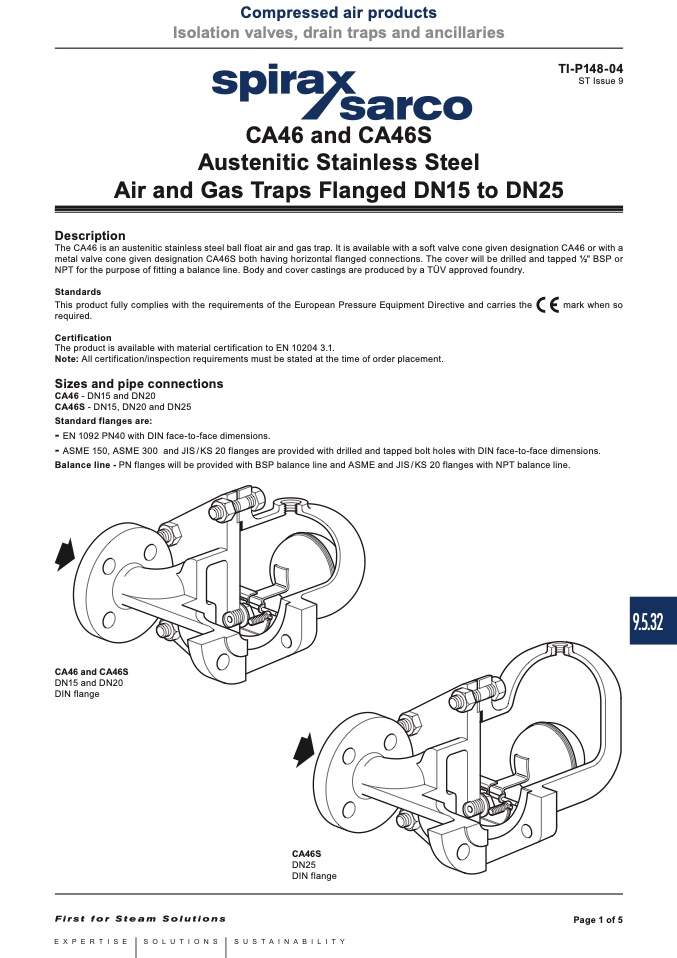

CA46 and CA46S

Austenitic Stainless Steel

Air and Gas Traps Flanged DN15 to DN25

Description

The CA46 is an austenitic stainless steel ball float air and gas trap. It is available with a soft valve cone given designation CA46 or with a

metal valve cone given designation CA46S both having horizontal flanged connections. The cover will be drilled and tapped 1⁄2" BSP or

NPT for the purpose of fitting a balance line. Body and cover castings are produced by a TÜV approved foundry.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive and carries the

mark when so

required.

Certification

The product is available with material certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at the time of order placement.

Sizes and pipe connections

CA46 - DN15 and DN20

CA46S - DN15, DN20 and DN25

Standard flanges are:

-

EN 1092 PN40 with DIN face-to-face dimensions.

-

ASME 150, ASME 300 and JIS/KS 20 flanges are provided with drilled and tapped bolt holes with DIN face-to-face dimensions.

Balance line - PN flanges will be provided with BSP balance line and ASME and JIS/KS 20 flanges with NPT balance line.

CA46 and CA46S

DN15 and DN20

DIN flange

CA46S

DN25

DIN flange
