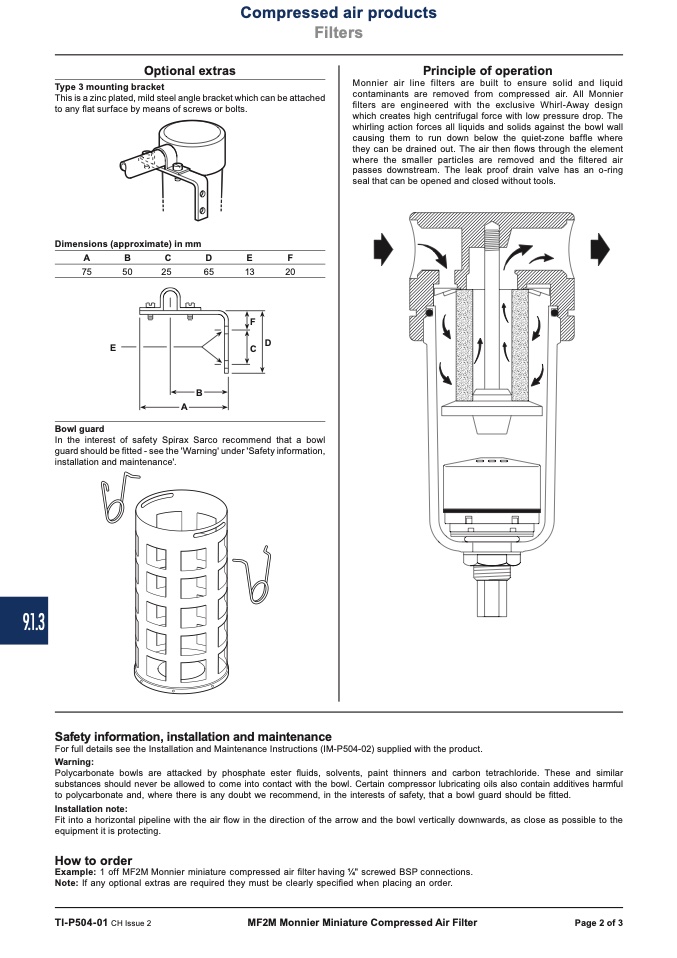

Type 3 mounting bracket

This is a zinc plated, mild steel angle bracket which can be attached

to any flat surface by means of screws or bolts.

Dimensions (approximate) in mm

Monnier air line filters are built to ensure solid and liquid

contaminants are removed from compressed air. All Monnier

filters are engineered with the exclusive Whirl-Away design

which creates high centrifugal force with low pressure drop. The

whirling action forces all liquids and solids against the bowl wall

causing them to run down below the quiet-zone baffle where

they can be drained out. The air then flows through the element

where the smaller particles are removed and the filtered air

passes downstream. The leak proof drain valve has an o-ring

seal that can be opened and closed without tools.

Bowl guard

In the interest of safety Spirax Sarco recommend that a bowl

guard should be fitted - see the 'Warning' under 'Safety information,

installation and maintenance'.

For full details see the Installation and Maintenance Instructions (IM-P504-02) supplied with the product.

Warning:

Polycarbonate bowls are attacked by phosphate ester fluids, solvents, paint thinners and carbon tetrachloride. These and similar

substances should never be allowed to come into contact with the bowl. Certain compressor lubricating oils also contain additives harmful

to polycarbonate and, where there is any doubt we recommend, in the interests of safety, that a bowl guard should be fitted.

Installation note:

Fit into a horizontal pipeline with the air flow in the direction of the arrow and the bowl vertically downwards, as close as possible to the

equipment it is protecting.

Example: 1 off MF2M Monnier miniature compressed air filter having 1⁄4" screwed BSP connections.

Note: If any optional extras are required they must be clearly specified when placing an order.
