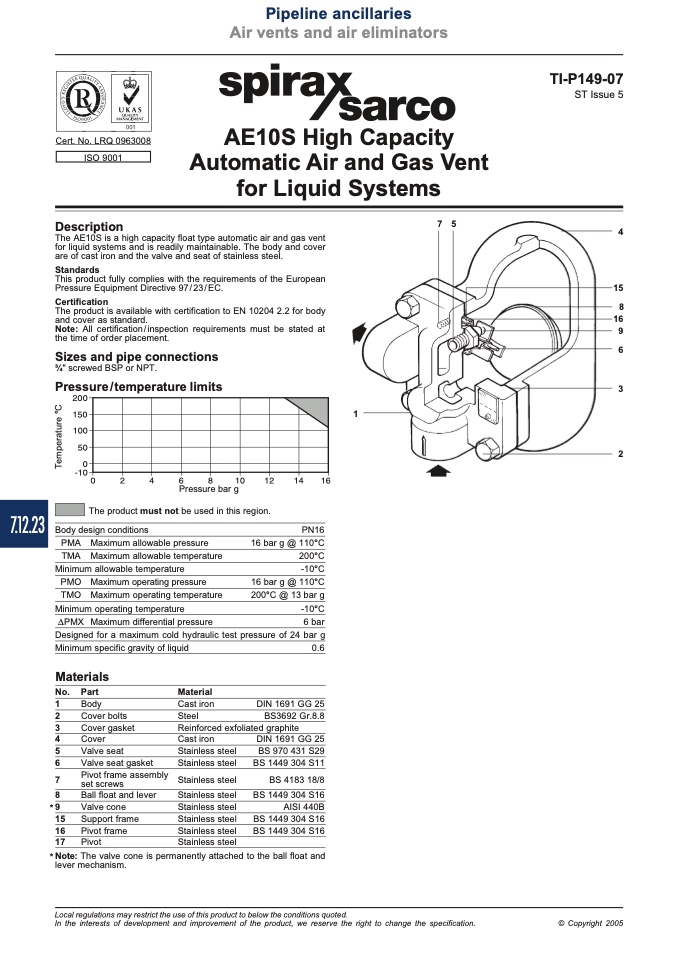

AE10S High Capacity

Automatic Air and Gas Vent

for Liquid Systems

TI-P149-07

ST Issue 5

Cert. No. LRQ 0963008

Description

The AE10S is a high capacity float type automatic air and gas vent

for liquid systems and is readily maintainable. The body and cover

are of cast iron and the valve and seat of stainless steel.

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

The product is available with certification to EN 10204 2.2 for body

and cover as standard.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

3⁄4" screwed BSP or NPT.

Pressure/temperature limits

��

Standards

��

Pressure bar g

The product must not be used in this region.

PN16

16 bar g @ 110°C

200°C

-10°C

16 bar g @ 110°C

200°C @ 13 bar g

-10°C

6 bar

Designed for a maximum cold hydraulic test pressure of 24 bar g

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

TMO Maximum operating temperature

Minimum operating temperature

DPMX Maximum differential pressure

Minimum specific gravity of liquid

0.6

DIN 1691 GG 25

BS3692 Gr.8.8

Materials

No. Part

Body

Cover bolts

Cover gasket

Cover

Valve seat

Valve seat gasket

Pivot frame assembly

set screws

Ball float and lever

* 9

Valve cone

15 Support frame

16 Pivot frame

17 Pivot

Material

Cast iron

Steel

Reinforced exfoliated graphite

Cast iron

Stainless steel

DIN 1691 GG 25

BS 970 431 S29

BS 1449 304 S11

BS 4183 18/8

BS 1449 304 S16

AISI 440B

BS 1449 304 S16

* Note: The valve cone is permanently attached to the ball float and

lever mechanism.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.
