Boiler house

Sample coolers

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2015

2.6.5

The product

must not be used

in this region

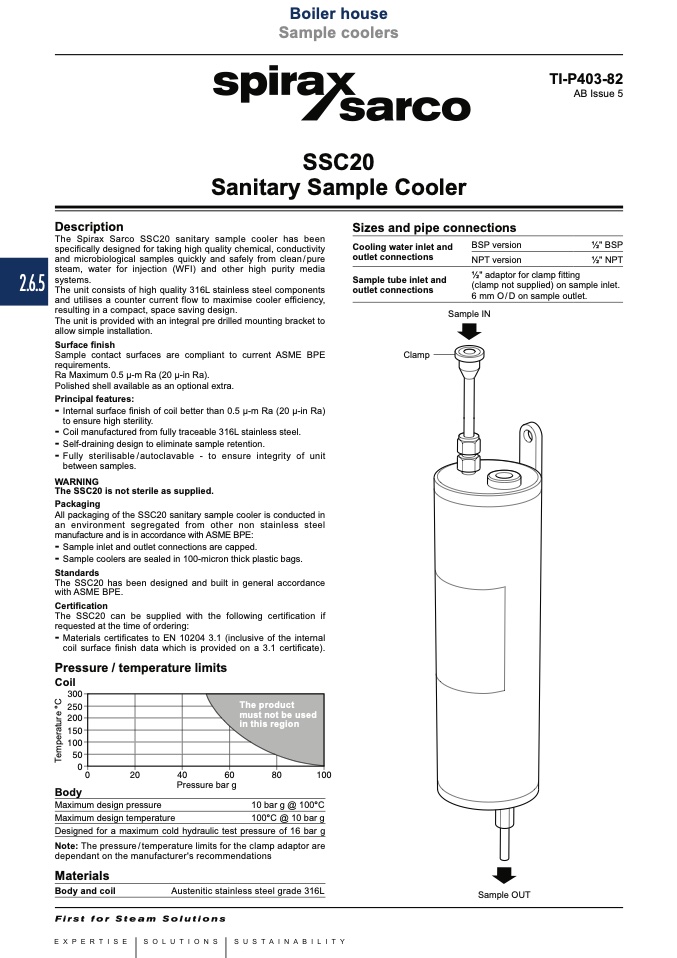

SSC20

Sanitary Sample Cooler

TI-P403-82

AB Issue 5

1⁄2" BSP

1⁄2" NPT

Description

The Spirax Sarco SSC20 sanitary sample cooler has been

specifically designed for taking high quality chemical, conductivity

and microbiological samples quickly and safely from clean / pure

steam, water for injection (WFI) and other high purity media

systems.

The unit consists of high quality 316L stainless steel components

and utilises a counter current flow to maximise cooler efficiency,

resulting in a compact, space saving design.

The unit is provided with an integral pre drilled mounting bracket to

allow simple installation.

Surface finish

Sample contact surfaces are compliant to current ASME BPE

requirements.

Ra Maximum 0.5 μ-m Ra (20 μ-in Ra).

Polished shell available as an optional extra.

Principal features:

-

Internal surface finish of coil better than 0.5 μ-m Ra (20 μ-in Ra)

to ensure high sterility.

-

Coil manufactured from fully traceable 316L stainless steel.

-

Self-draining design to eliminate sample retention.

-

Fully sterilisable/autoclavable - to ensure integrity of unit

between samples.

WARNING

The SSC20 is not sterile as supplied.

Packaging

Sizes and pipe connections

Cooling water inlet and

outlet connections

Sample tube inlet and

outlet connections

Clamp

BSP version

NPT version

1⁄2" adaptor for clamp fitting

(clamp not supplied) on sample inlet.

6 mm O/D on sample outlet.

Sample IN

All packaging of the SSC20 sanitary sample cooler is conducted in

an environment segregated from other non stainless steel

manufacture and is in accordance with ASME BPE:

-

Sample inlet and outlet connections are capped.

-

Sample coolers are sealed in 100-micron thick plastic bags.

Standards

The SSC20 has been designed and built in general accordance

with ASME BPE.

Certification

The SSC20 can be supplied with the following certification if

requested at the time of ordering:

-

Materials certificates to EN 10204 3.1 (inclusive of the internal

coil surface finish data which is provided on a 3.1 certificate).

Pressure / temperature limits

Coil

������

������

������

������

������

����

��

��

����

����

����

����

������

Body

Pressure bar g

Maximum design pressure

Maximum design temperature

Designed for a maximum cold hydraulic test pressure of 16 bar g

Note: The pressure / temperature limits for the clamp adaptor are

dependant on the manufacturer's recommendations

Materials

Body and coil

Austenitic stainless steel grade 316L

Sample OUT

10 bar g @ 100°C

100°C @ 10 bar g

T

e

m

p

e

r

a

t

u

r

e

°

C
