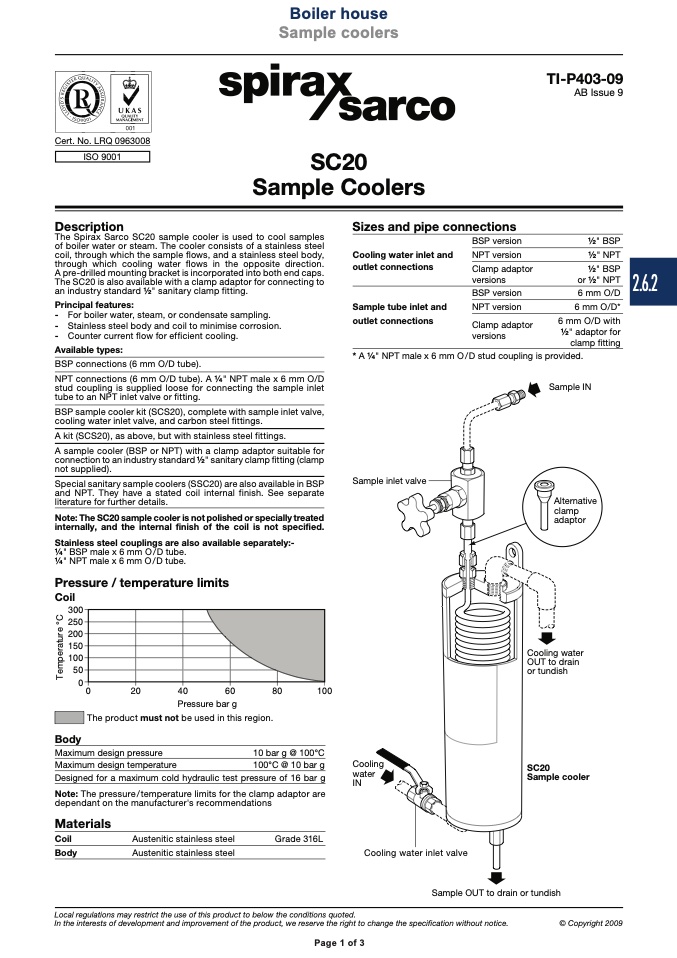

Boiler house

Sample coolers

Page 1 of 3

Cert. No. LRQ 0963008

Description

The Spirax Sarco SC20 sample cooler is used to cool samples

of boiler water or steam. The cooler consists of a stainless steel

coil, through which the sample flows, and a stainless steel body,

through which cooling water flows in the opposite direction.

A pre-drilled mounting bracket is incorporated into both end caps.

The SC20 is also available with a clamp adaptor for connecting to

an industry standard 1⁄2" sanitary clamp fitting.

Principal features:

- For boiler water, steam, or condensate sampling.

- Stainless steel body and coil to minimise corrosion.

- Counter current flow for efficient cooling.

Available types:

BSP connections (6 mm O/D tube).

NPT connections (6 mm O/D tube). A 1⁄4" NPT male x 6 mm O/D

stud coupling is supplied loose for connecting the sample inlet

tube to an NPT inlet valve or fitting.

BSP sample cooler kit (SCS20), complete with sample inlet valve,

cooling water inlet valve, and carbon steel fittings.

A kit (SCS20), as above, but with stainless steel fittings.

A sample cooler (BSP or NPT) with a clamp adaptor suitable for

connection to an industry standard 1⁄2" sanitary clamp fitting (clamp

not supplied).

Special sanitary sample coolers (SSC20) are also available in BSP

and NPT. They have a stated coil internal finish. See separate

literature for further details.

Note: The SC20 sample cooler is not polished or specially treated

internally, and the internal finish of the coil is not specified.

Stainless steel couplings are also available separately:-

1⁄4" BSP male x 6 mm O/D tube.

1⁄4" NPT male x 6 mm O/D tube.

Pressure / temperature limits

Coil

���

���

���

���

���

��

�

�

��

��

��

��

���

Pressure bar g

The product must not be used in this region.

Body

Maximum design pressure

10 bar g @ 100°C

Maximum design temperature

100°C @ 10 bar g

Designed for a maximum cold hydraulic test pressure of 16 bar g

Note: The pressure/temperature limits for the clamp adaptor are

dependant on the manufacturer's recommendations

Materials

Coil

Austenitic stainless steel

Grade 316L

Body

Austenitic stainless steel

TI-P403-09

AB Issue 9

1⁄2" BSP

1⁄2" NPT

1⁄2" BSP

or 1⁄2" NPT

6 mm O/D

6 mm O/D*

6 mm O/D with

1⁄2" adaptor for

clamp fitting

ISO 9001

SC20

Sample Coolers

Sizes and pipe connections

Cooling water inlet and

outlet connections

Sample tube inlet and

outlet connections

BSP version

NPT version

Clamp adaptor

versions

BSP version

NPT version

Clamp adaptor

versions

* A 1⁄4" NPT male x 6 mm O/D stud coupling is provided.

Sample IN

Sample inlet valve

Cooling

water

IN

Alternative

clamp

adaptor

Cooling water

OUT to drain

or tundish

SC20

Sample cooler

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2009

Page 1 of 3

Cooling water inlet valve

Sample OUT to drain or tundish

2.6.2

T

e

m

p

e

r

a

t

u

r

e

°

C
