Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

Separators and insulation jackets

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

Design

pressure

bar g

Design

temperature

°C

14 198

20 213

23 217

25 225

25 225

7.8.19

TI-P138-03

CMGT Issue 10

S7

Carbon Steel

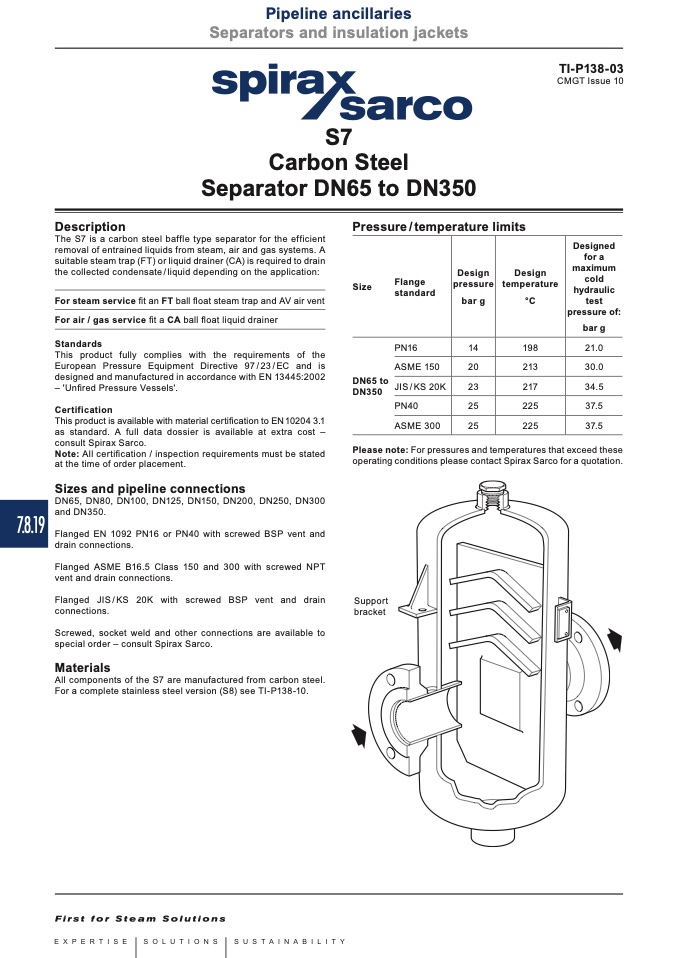

Separator DN65 to DN350

Description

The S7 is a carbon steel baffle type separator for the efficient

removal of entrained liquids from steam, air and gas systems. A

suitable steam trap (FT) or liquid drainer (CA) is required to drain

the collected condensate / liquid depending on the application:

For steam service fit an FT ball float steam trap and AV air vent

For air / gas service fit a CA ball float liquid drainer

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC and is

designed and manufactured in accordance with EN 13445:2002

– 'Unfired Pressure Vessels'.

Certification

This product is available with material certification to EN10204 3.1

as standard. A full data dossier is available at extra cost –

consult Spirax Sarco.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Sizes and pipeline connections

DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

and DN350.

Flanged EN 1092 PN16 or PN40 with screwed BSP vent and

drain connections.

Flanged ASME B16.5 Class 150 and 300 with screwed NPT

vent and drain connections.

Flanged JIS / KS 20K with screwed BSP vent and drain

connections.

Screwed, socket weld and other connections are available to

special order – consult Spirax Sarco.

Materials

All components of the S7 are manufactured from carbon steel.

For a complete stainless steel version (S8) see TI-P138-10.

Pressure / temperature limits

Size

DN65 to

DN350

Flange

standard

PN16

ASME 150

JIS / KS 20K

PN40

ASME 300

Designed

for a

maximum

cold

hydraulic

test

pressure of:

bar g

21.0

30.0

34.5

37.5

37.5

Please note: For pressures and temperatures that exceed these

operating conditions please contact Spirax Sarco for a quotation.

Support

bracket
