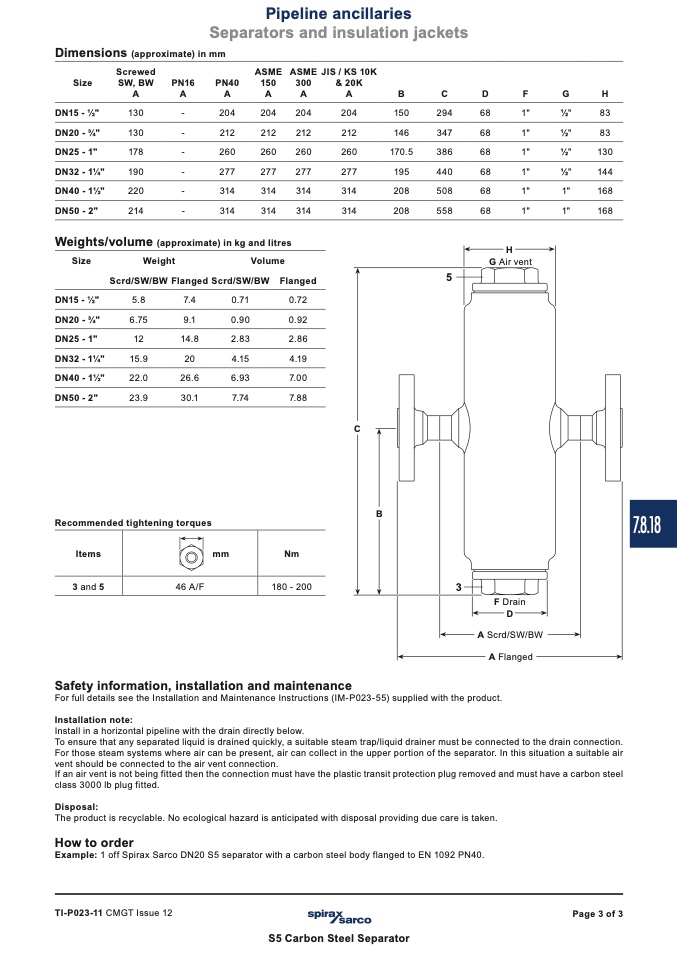

Dimensions (approximate) in mm
Pipeline ancillaries
Separators and insulation jackets
Size
Screwed
ASME ASME JIS / KS 10K
SW, BW
PN16
PN40
150
300
& 20K
A
A
A
A
A
A
B
C
D
F
G
H
DN15 - 1⁄2"
130
DN20 - 3⁄4"
130
DN25 - 1"
178
DN32 - 11⁄4"
190
DN40 - 11⁄2"
220
DN50 - 2"
214
-
204
204
-
212
212
-
260
260
-
277
277
-
314
314
-
314
314
204
212
260
277
314
314
204
212
260
277
314
314
150
294
146
347
170.5
386
195
440
208
508
208
558
5
68
68
68
68
68
68
1"
1⁄2"
83
1"
1⁄2"
83
1"
1⁄2"
130
1"
1⁄2"
144
1"
1"
168
1"
1"
168
Weights/volume (approximate) in kg and litres
Size
Weight
Volume
H
G Air vent
Scrd/SW/BW Flanged Scrd/SW/BW
Flanged
0.72
0.92
2.86
4.19
7.00
7.88
DN15 - 1⁄2"
DN20 - 3⁄4"
DN25 - 1"
DN32 - 11⁄4"
DN40 - 11⁄2"
DN50 - 2"
5.8
7.4
6.75
9.1
12
14.8
15.9
20
22.0
26.6
23.9
30.1
0.71
0.90
2.83
4.15
6.93
7.74
C
Recommended tightening torques
Items
3 and 5
Nm
180 - 200
3
B
mm
46 A/F
F Drain
D
7.8.18
A Scrd/SW/BW
A Flanged
For full details see the Installation and Maintenance Instructions (IM-P023-55) supplied with the product.
Installation note:
Install in a horizontal pipeline with the drain directly below.
To ensure that any separated liquid is drained quickly, a suitable steam trap/liquid drainer must be connected to the drain connection.
For those steam systems where air can be present, air can collect in the upper portion of the separator. In this situation a suitable air
vent should be connected to the air vent connection.
If an air vent is not being fitted then the connection must have the plastic transit protection plug removed and must have a carbon steel
class 3000 lb plug fitted.
Disposal:
The product is recyclable. No ecological hazard is anticipated with disposal providing due care is taken.
How to order
Example: 1 off Spirax Sarco DN20 S5 separator with a carbon steel body flanged to EN 1092 PN40.
Safety information, installation and maintenance
TI-P023-11 CMGT Issue 12
Page 3 of 3
S5 Carbon Steel Separator
