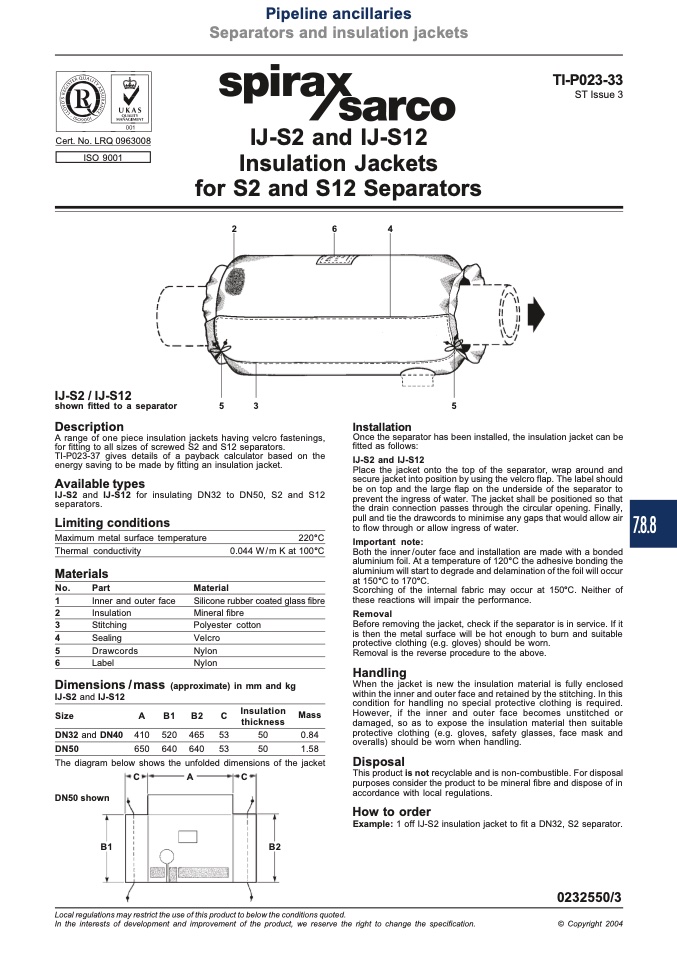

Pipeline ancillaries

Separators and insulation jackets

ISO 9001

TI-P023-33

ST Issue 3

Cert. No. LRQ 0963008

IJ-S2 and IJ-S12

Insulation Jackets

for S2 and S12 Separators

2

6

4

IJ-S2 / IJ-S12

shown fitted to a separator

Description

5

3

5

A range of one piece insulation jackets having velcro fastenings,

for fitting to all sizes of screwed S2 and S12 separators.

TI-P023-37 gives details of a payback calculator based on the

energy saving to be made by fitting an insulation jacket.

Available types

IJ-S2 and IJ-S12 for insulating DN32 to DN50, S2 and S12

separators.

Once the separator has been installed, the insulation jacket can be

fitted as follows:

IJ-S2 and IJ-S12

Place the jacket onto the top of the separator, wrap around and

secure jacket into position by using the velcro flap. The label should

be on top and the large flap on the underside of the separator to

prevent the ingress of water. The jacket shall be positioned so that

the drain connection passes through the circular opening. Finally,

pull and tie the drawcords to minimise any gaps that would allow air

to flow through or allow ingress of water.

Important note:

Both the inner /outer face and installation are made with a bonded

aluminium foil. At a temperature of 120°C the adhesive bonding the

aluminium will start to degrade and delamination of the foil will occur

at 150°C to 170°C.

Scorching of the internal fabric may occur at 150°C. Neither of

these reactions will impair the performance.

Removal

Before removing the jacket, check if the separator is in service. If it

is then the metal surface will be hot enough to burn and suitable

protective clothing (e.g. gloves) should be worn.

Removal is the reverse procedure to the above.

Handling

When the jacket is new the insulation material is fully enclosed

within the inner and outer face and retained by the stitching. In this

condition for handling no special protective clothing is required.

However, if the inner and outer face becomes unstitched or

damaged, so as to expose the insulation material then suitable

protective clothing (e.g. gloves, safety glasses, face mask and

overalls) should be worn when handling.

Disposal

This product is not recyclable and is non-combustible. For disposal

purposes consider the product to be mineral fibre and dispose of in

accordance with local regulations.

How to order

Example: 1 off IJ-S2 insulation jacket to fit a DN32, S2 separator.

0232550/3

Limiting conditions

Maximum metal surface temperature

Thermal conductivity

220°C

0.044 W/m K at 100°C

Installation

Materials

No.

Part

1

Inner and outer face

2

Insulation

3

Stitching

4

Sealing

5

Drawcords

6

Label

Material

Dimensions/mass (approximate) in mm and kg

IJ-S2 and IJ-S12

Silicone rubber coated glass fibre

Mineral fibre

Polyester cotton

Velcro

Nylon

Nylon

Insulation

thickness

DN32 and DN40 410

DN50

650

The diagram below shows the unfolded dimensions of the jacket

Size

A

B1 B2

C

Mass

520 465 53

50

0.84

640 640 53

50

1.58

C

A

C

DN50 shown

B1

B2

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.
