Pipeline ancillaries

Separators and insulation jackets

ISO 9001

7.8.5

Steam

saturation

curve

TI-P023-25

ST Issue 3

Cert. No. LRQ 0963008

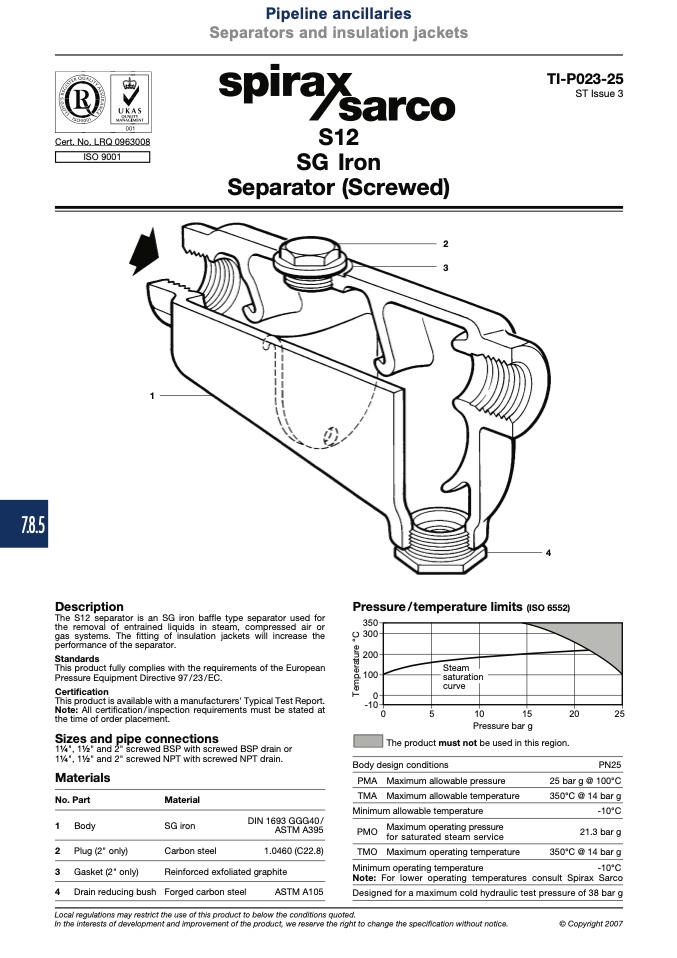

S12

SG Iron

Separator (Screwed)

2

3

1

4

Description

The S12 separator is an SG iron baffle type separator used for

the removal of entrained liquids in steam, compressed air or

gas systems. The fitting of insulation jackets will increase the

performance of the separator.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a manufacturers' Typical Test Report.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

11⁄4", 11⁄2" and 2" screwed BSP with screwed BSP drain or

11⁄4", 11⁄2" and 2" screwed NPT with screwed NPT drain.

Pressure/temperature limits (ISO 6552)

���

���

���

���

�

���

�

�

��

��

��

��

Pressure bar g

The product must not be used in this region.

Body design conditions

Materials

No. Part

1

Body

2

Plug (2" only)

3

Gasket (2" only)

4

Drain reducing bush

Material

SG iron

Carbon steel

Reinforced exfoliated graphite

Forged carbon steel

ASTM A105

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

Maximum operating pressure

PMO

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

PN25

25 bar g @ 100°C

350°C @ 14 bar g

-10°C

21.3 bar g

350°C @ 14 bar g

DIN 1693 GGG40/

ASTM A395

1.0460 (C22.8)

-10°C

Note: For lower operating temperatures consult Spirax Sarco

Designed for a maximum cold hydraulic test pressure of 38 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2007

T

e

m

p

e

r

a

t

u

r

e

°

C
