BSP and NPT: 1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2" and 3".

EN 1092 PN16: DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65 and DN80.

EN 1092 PN10: DN100, DN150 and DN200.

ASME 150: 1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", 21⁄2", 3", 4", 6" and 8".

DN8 to DN80

DN100 to DN200

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

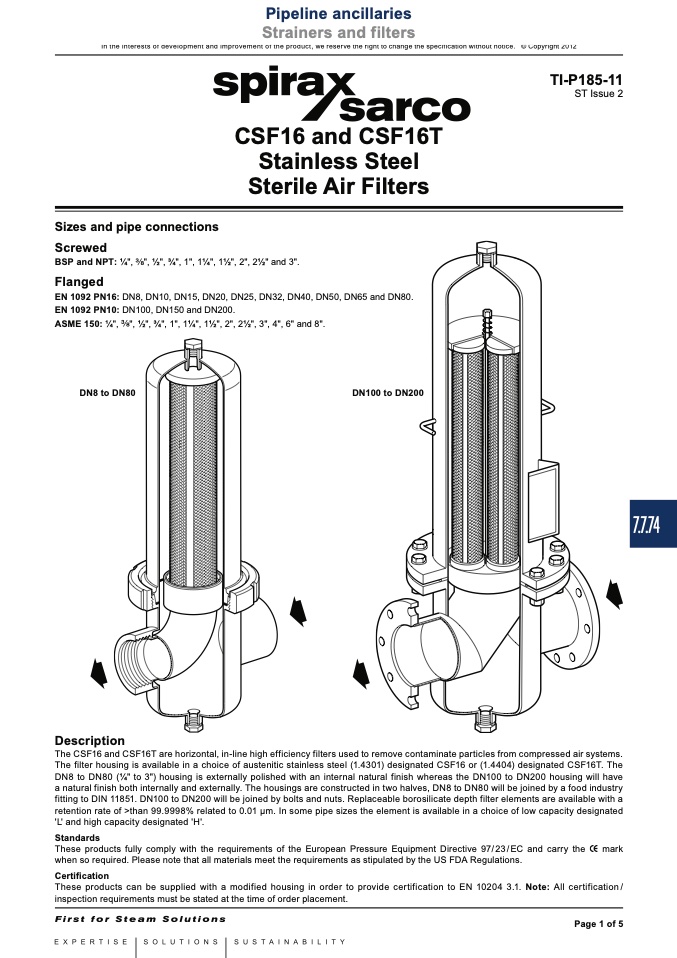

CSF16 and CSF16T

The CSF16 and CSF16T are horizontal, in-line high efficiency filters used to remove contaminate particles from compressed air systems.

The filter housing is available in a choice of austenitic stainless steel (1.4301) designated CSF16 or (1.4404) designated CSF16T. The

DN8 to DN80 (1⁄4" to 3") housing is externally polished with an internal natural finish whereas the DN100 to DN200 housing will have

a natural finish both internally and externally. The housings are constructed in two halves, DN8 to DN80 will be joined by a food industry

fitting to DIN 11851. DN100 to DN200 will be joined by bolts and nuts. Replaceable borosilicate depth filter elements are available with a

retention rate of >than 99.9998% related to 0.01 μm. In some pipe sizes the element is available in a choice of low capacity designated

'L' and high capacity designated 'H'.

Standards

These products fully comply with the requirements of the European Pressure Equipment Directive 97/23/EC and carry the

mark

when so required. Please note that all materials meet the requirements as stipulated by the US FDA Regulations.

Certification

These products can be supplied with a modified housing in order to provide certification to EN 10204 3.1. Note: All certification/

inspection requirements must be stated at the time of order placement.

ST Issue 2

Page 1 of 5
