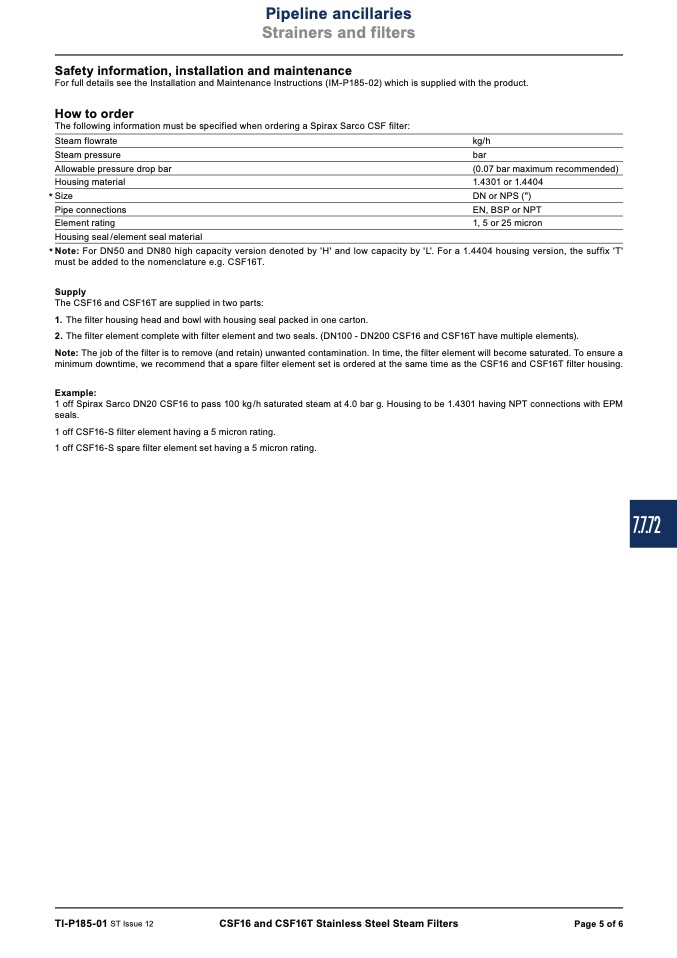

For full details see the Installation and Maintenance Instructions (IM-P185-02) which is supplied with the product.

The following information must be specified when ordering a Spirax Sarco CSF filter:

Steam flowrate

Steam pressure

Allowable pressure drop bar

Housing material

* Size

Pipe connections

Element rating

Housing seal /element seal material

kg/h

bar

(0.07 bar maximum recommended)

1.4301 or 1.4404

DN or NPS (")

EN, BSP or NPT

1, 5 or 25 micron

* Note: For DN50 and DN80 high capacity version denoted by 'H' and low capacity by 'L'. For a 1.4404 housing version, the suffix 'T'

must be added to the nomenclature e.g. CSF16T.

Supply

The CSF16 and CSF16T are supplied in two parts:

1. The filter housing head and bowl with housing seal packed in one carton.

2. The filter element complete with filter element and two seals. (DN100 - DN200 CSF16 and CSF16T have multiple elements).

Note: The job of the filter is to remove (and retain) unwanted contamination. In time, the filter element will become saturated. To ensure a

minimum downtime, we recommend that a spare filter element set is ordered at the same time as the CSF16 and CSF16T filter housing.

Example:

1 off Spirax Sarco DN20 CSF16 to pass 100 kg/h saturated steam at 4.0 bar g. Housing to be 1.4301 having NPT connections with EPM

seals.

1 off CSF16-S filter element having a 5 micron rating.

1 off CSF16-S spare filter element set having a 5 micron rating.
