Pipeline ancillaries

Strainers and filters

Steam

saturation

curve

B

C

D

7.7.63

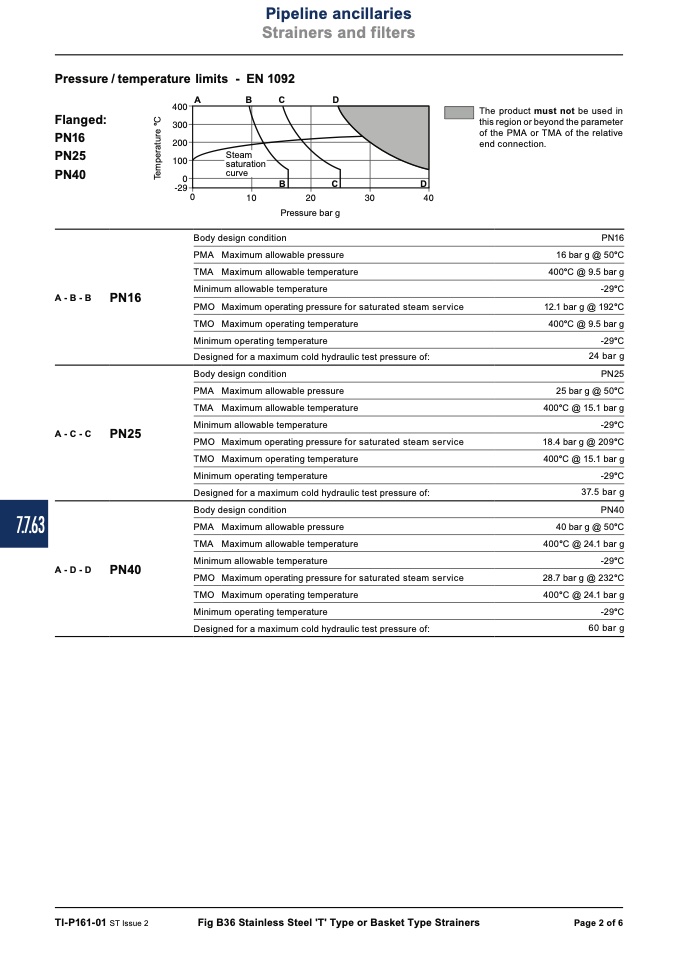

Pressure / temperature limits - EN 1092

������

A

B

C

D

Flanged:

������

The product must not be used in

this region or beyond the parameter

of the PMA or TMA of the relative

end connection.

PN16

PN25

PN40

A-B-B

PN16

A-C-C

PN25

A-D-D

PN40

������

������

��

������

��

����

����

����

����

Pressure bar g

Body design condition

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure for saturated steam

TMO Maximum operating temperature

Minimum operating temperature

Designed for a maximum cold hydraulic test pressure of:

Body design condition

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure for saturated steam

TMO Maximum operating temperature

Minimum operating temperature

Designed for a maximum cold hydraulic test pressure of:

Body design condition

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure for saturated steam

TMO Maximum operating temperature

Minimum operating temperature

Designed for a maximum cold hydraulic test pressure of:

service

service

service

PN16

16 bar g @ 50°C

400°C @ 9.5 bar g

-29°C

12.1 bar g @ 192°C

400°C @ 9.5 bar g

-29°C

24 bar g

PN25

25 bar g @ 50°C

400°C @ 15.1 bar g

-29°C

18.4 bar g @ 209°C

400°C @ 15.1 bar g

-29°C

37.5 bar g

PN40

40 bar g @ 50°C

400°C @ 24.1 bar g

-29°C

28.7 bar g @ 232°C

400°C @ 24.1 bar g

-29°C

60 bar g

TI-P161-01 ST Issue 2

Fig B36 Stainless Steel 'T' Type or Basket Type Strainers

Page 2 of 6

T

e

m

p

e

r

a

t

u

r

e

°

C
