Spirax Sarco - Catalogo Agosto 2017

ISO 9001

Key

Screens 100 mesh or coarser

All screens

ST Issue 2

Cert. No. LRQ 0963008

Note: Some strainers are not available in all the sizes shown. Please refer to the relevant Technical Information (TI) sheet for the particular

product to ensure that the connection size required is available.

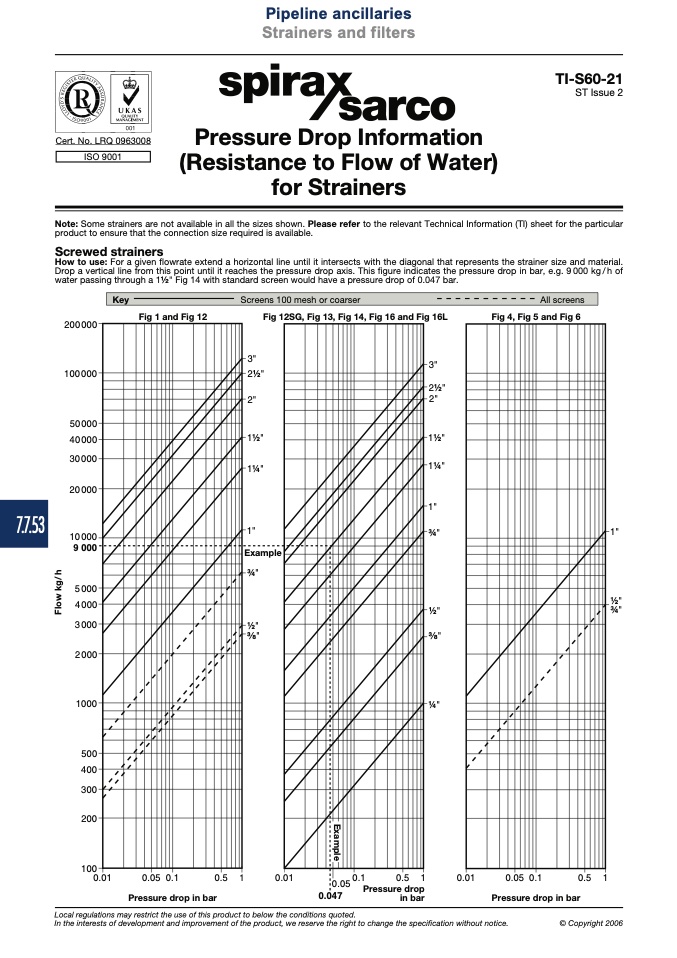

How to use: For a given flowrate extend a horizontal line until it intersects with the diagonal that represents the strainer size and material.

Drop a vertical line from this point until it reaches the pressure drop axis. This figure indicates the pressure drop in bar, e.g. 9 000 kg / h of

water passing through a 11⁄2" Fig 14 with standard screen would have a pressure drop of 0.047 bar.

��

� ��

��

Fig 1 and Fig 12

Fig 12SG, Fig 13, Fig 14, Fig 16 and Fig 16L

Fig 4, Fig 5 and Fig 6

��

Example

��

�

��

�

Pressure drop in bar

Pressure drop

��

in bar

Pressure drop in bar

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
