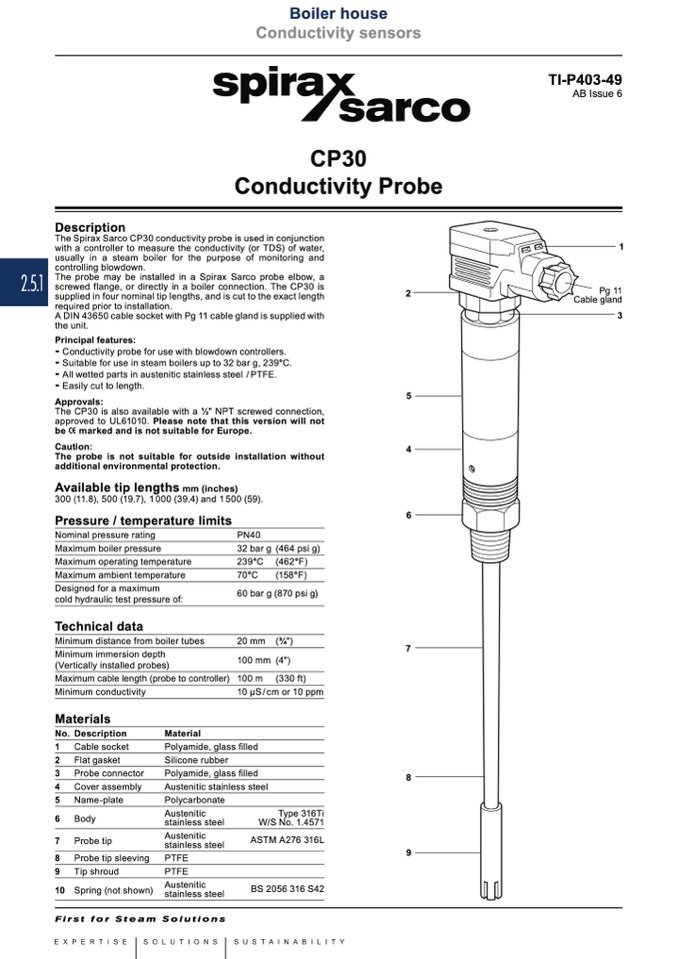

CP30

Conductivity Probe

Description

The Spirax Sarco CP30 conductivity probe is used in conjunction

with a controller to measure the conductivity (or TDS) of water,

usually in a steam boiler for the purpose of monitoring and

controlling blowdown.

The probe may be installed in a Spirax Sarco probe elbow, a

screwed flange, or directly in a boiler connection. The CP30 is

supplied in four nominal tip lengths, and is cut to the exact length

required prior to installation.

A DIN 43650 cable socket with Pg 11 cable gland is supplied with

the unit.

Principal features:

-

Conductivity probe for use with blowdown controllers.

-

Suitable for use in steam boilers up to 32 bar g, 239°C.

-

All wetted parts in austenitic stainless steel /PTFE.

-

Easily cut to length.

Approvals:

The CP30 is also available with a 1⁄2" NPT screwed connection,

approved to UL61010. Please note that this version will not

be marked and is not suitable for Europe.

Caution:

The probe is not suitable for outside installation without

additional environmental protection.

Available tip lengths mm (inches)

300 (11.8), 500 (19.7), 1 000 (39.4) and 1 500 (59).

2

5

4

6

7

8

9

1

Pg 11

Cable gland

3

Pressure / temperature limits

Nominal pressure rating

Maximum boiler pressure

Maximum operating temperature

Maximum ambient temperature

Designed for a maximum

cold hydraulic test pressure of:

Technical data

Minimum distance from boiler tubes

Minimum immersion depth

(Vertically installed probes)

Maximum cable length (probe to controller)

Minimum conductivity

PN40

32barg(464psig)

239°C (462°F)

70°C

(158°F)

60 bar g (870 psi g)

20 mm (3⁄4")

100 mm (4")

100 m (330 ft)

10 μS/cm or 10 ppm

Materials

No. Description

1 Cable socket

2 Flat gasket

3 Probe connector

4 Cover assembly

5 Name-plate

6 Body

7 Probe tip

8 Probe tip sleeving

9 Tip shroud

10 Spring (not shown)

Material

Polyamide, glass filled

Silicone rubber

Polyamide, glass filled

Austenitic stainless steel

Polycarbonate

Austenitic

ASTM A276 316L

BS 2056 316 S42

stainless steel

Type 316Ti

W/S No. 1.4571

Austenitic

stainless steel

PTFE

PTFE

Austenitic

stainless steel
