Pipeline ancillaries

Strainers and filters

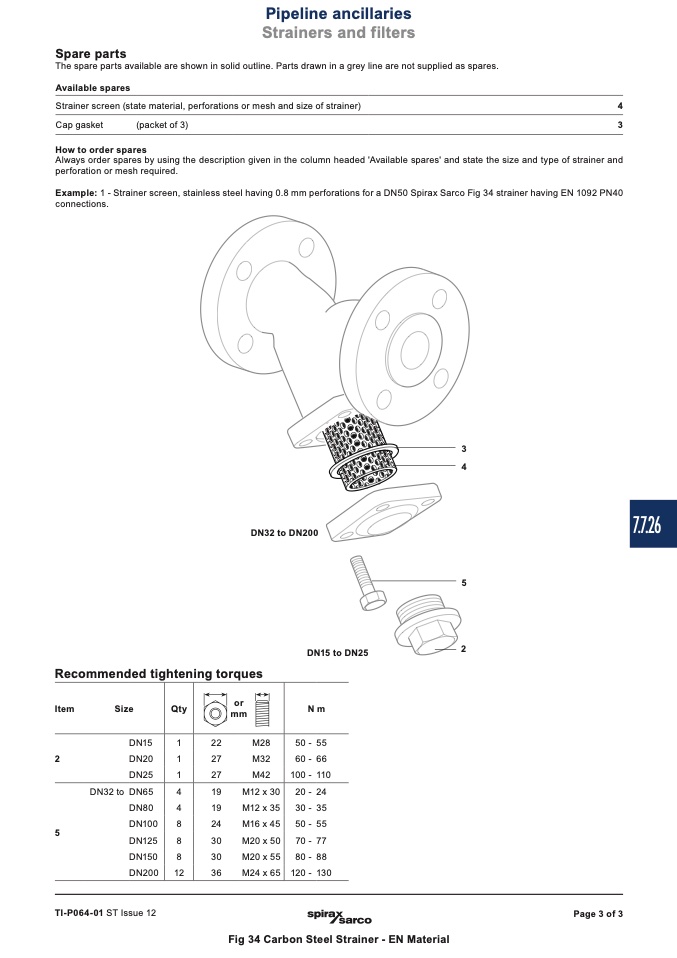

Spare parts

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Strainer screen (state material, perforations or mesh and size of strainer)

4

Cap gasket

(packet of 3)

3

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of strainer and

perforation or mesh required.

Example: 1 - Strainer screen, stainless steel having 0.8 mm perforations for a DN50 Spirax Sarco Fig 34 strainer having EN 1092 PN40

connections.

DN32 to DN200

3

4

5

2

Recommended tightening torques

Item

Size

DN15

2

DN20

DN25

DN15 to DN25

Nm

50 - 55

60 - 66

100 - 110

Qty

or

mm

1

1

1

22

M28

27

M32

27

M42

4

4

8

8

8

12

19

M12x30

19

M12x35

24

M16x45

30

M20x50

30

M20x55

36

M24x65

5

DN32 to DN65

DN80

30-35

DN100

50-55

DN125

70-77

DN150

80-88

DN200

120 - 130

20-24

TI-P064-01 ST Issue 12

Page 3 of 3

Fig 34 Carbon Steel Strainer - EN Material

7.7.26
