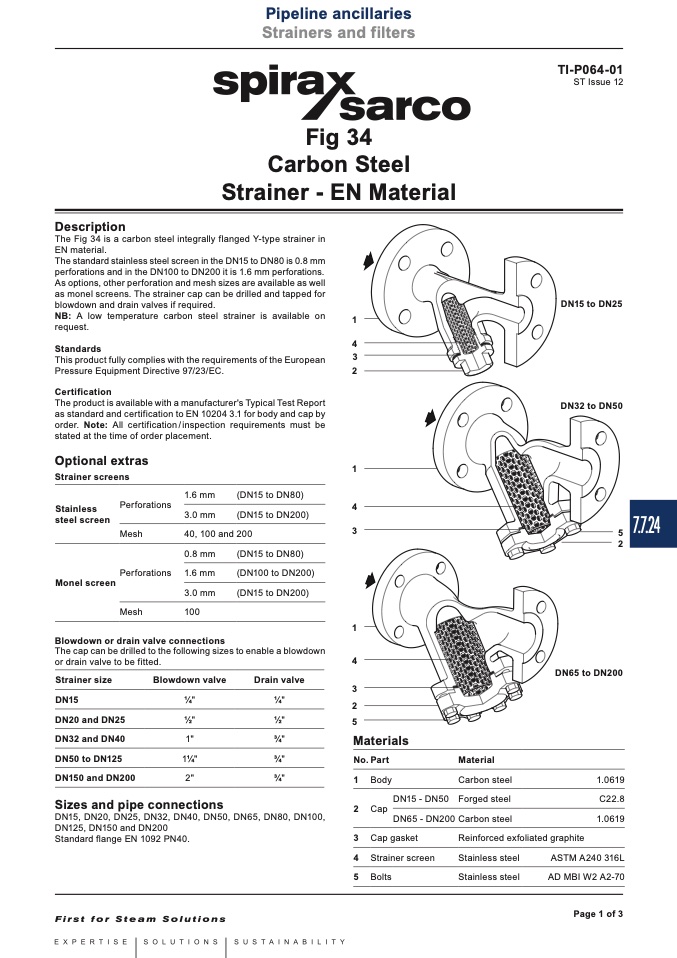

Description

The Fig 34 is a carbon steel integrally flanged Y-type strainer in

EN material.

The standard stainless steel screen in the DN15 to DN80 is 0.8 mm

perforations and in the DN100 to DN200 it is 1.6 mm perforations.

As options, other perforation and mesh sizes are available as well

as monel screens. The strainer cap can be drilled and tapped for

blowdown and drain valves if required.

NB: A low temperature carbon steel strainer is available on

request.

4

DN15 to DN25

DN32 to DN50

5

7.7.24

2

DN65 to DN200

Carbon steel

Forged steel

Carbon steel

Reinforced exfoliated graphite

Stainless steel

ASTM A240 316L

Stainless steel

AD MBI W2 A2-70

Standards

3

Pressure Equipment Directive 97/23/EC.

2

Certification

The product is available with a manufacturer's Typical Test Report

as standard and certification to EN 10204 3.1 for body and cap by

order. Note: All certification/inspection requirements must be

stated at the time of order placement.

This product fully complies with the requirements of the European

Optional extras

Strainer screens

Stainless

Perforations

steel screen

Mesh

Monel screen

Perforations

Mesh

1.6 mm

3.0 mm

40, 100

0.8 mm

1.6 mm

3.0 mm

100

(DN15 to DN80)

(DN15 to DN200)

and 200

(DN15 to DN80)

(DN100 to DN200)

(DN15 to DN200)

1

4

3

1

4

3

2

5

Materials

No. Part

1 Body

2 Cap

DN15 - DN50

DN65 - DN200

3 Cap gasket

4 Strainer screen

5 Bolts

Blowdown or drain valve connections

The cap can be drilled to the following sizes to enable a blowdown

or drain valve to be fitted.

Strainer size

DN15

DN20 and DN25

DN32 and DN40

DN50 to DN125

DN150 and DN200

Blowdown valve

1⁄4"

1⁄2"

1"

11⁄4"

2"

Drain valve

1⁄4"

1⁄2"

3⁄4"

3⁄4"

3⁄4"

Material

Sizes and pipe connections

1.0619

C22.8

1.0619

DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100,

DN125, DN150 and DN200

Standard flange EN 1092 PN40.

Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Strainers and filters

Fig 34

Carbon Steel

Strainer - EN Material

© Copyright 2016

1

TI-P064-01

ST Issue 12

Page 1 of 3
