7.7.1

1

TP1

3

2

Conical

Description

Sizes and pipe connections

DN40 - DN700 (11⁄2" – 28")

Designed for installation between the following flanges:

EN 1092 PN10, PN16, PN25 and PN40 or

ASME 150, ASME 300 and ASME 600

1

Materials

No. Part

1

Collar

2

Screen

3

Mesh lining

Material

Stainless steel

Stainless steel

Stainless steel

AISI 304L or

AISI 304L or

AISI 304L or

AISI 316L

AISI 316L

AISI 316L

Optional extras

3

2

Pipeline ancillaries

Strainers and filters

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

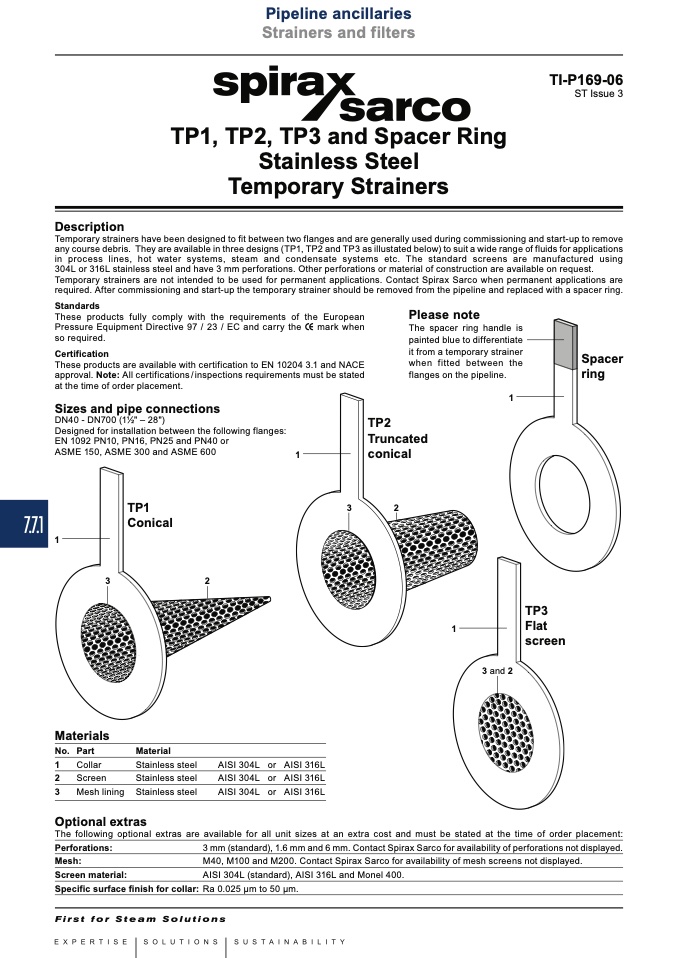

TP1, TP2, TP3 and Spacer Ring

Stainless Steel

Temporary Strainers

Temporary strainers have been designed to fit between two flanges and are generally used during commissioning and start-up to remove

any course debris. They are available in three designs (TP1, TP2 and TP3 as illustated below) to suit a wide range of fluids for applications

in process lines, hot water systems, steam and condensate systems etc. The standard screens are manufactured using

304L or 316L stainless steel and have 3 mm perforations. Other perforations or material of construction are available on request.

Temporary strainers are not intended to be used for permanent applications. Contact Spirax Sarco when permanent applications are

required. After commissioning and start-up the temporary strainer should be removed from the pipeline and replaced with a spacer ring.

Standards

These products fully comply with the requirements of the European

Please note

The spacer ring handle is

painted blue to differentiate

it from a temporary strainer

when fitted between the

flanges on the pipeline.

Pressure Equipment Directive 97 / 23 / EC and carry the

so required.

Certification

mark when

These products are available with certification to EN 10204 3.1 and NACE

approval. Note: All certifications / inspections requirements must be stated

at the time of order placement.

Spacer

ring

1

TP2

Truncated

conical

The following optional extras are available for all unit sizes at an extra cost and must be stated at the time of order placement:

Perforations:

Mesh:

Screen material:

Specific surface finish for collar: Ra 0.025 μm to 50 μm.

3 mm (standard), 1.6 mm and 6 mm. Contact Spirax Sarco for availability of perforations not displayed.

M40, M100 and M200. Contact Spirax Sarco for availability of mesh screens not displayed.

AISI 304L (standard), AISI 316L and Monel 400.

1

TP3

Flat

screen

3 and 2

TI-P169-06

ST Issue 3
