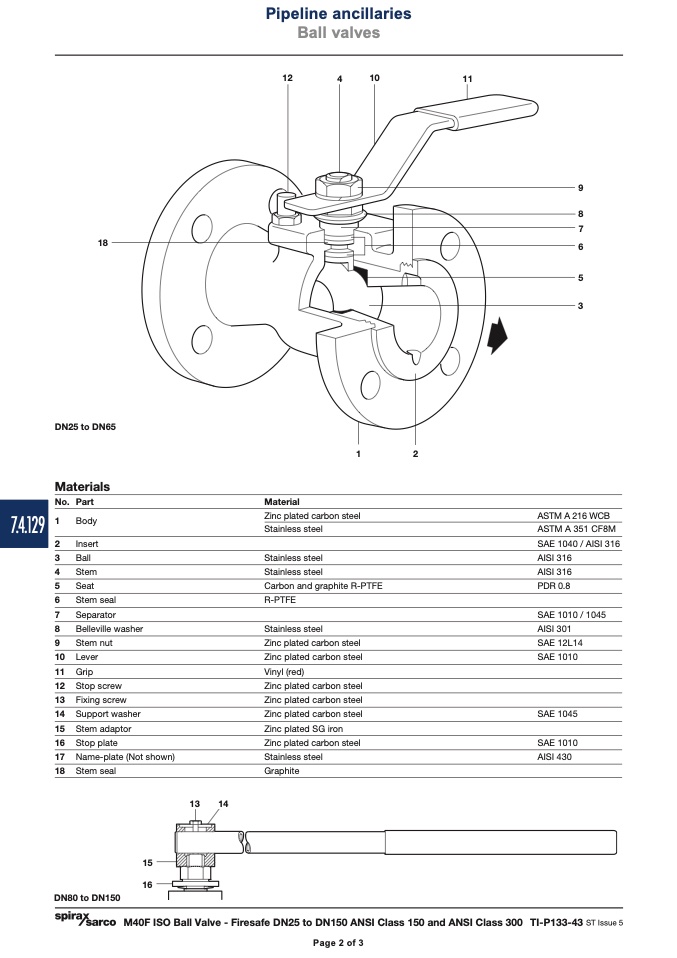

DN25 to DN65

Materials

No. Part

1

Body

2

Insert

3

Ball

4

Stem

5

Seat

6

Stem seal

7

Separator

8

Belleville washer

9

Stem nut

10 Lever

11 Grip

12 Stop screw

13 Fixing screw

14 Support washer

15 Stem adaptor

16 Stop plate

17 Name-plate (Not shown)

18 Stem seal

15

16

DN80 to DN150

1

2

Material

Zinc plated carbon steel

Stainless steel

Stainless steel

Stainless steel

Carbon and graphite R-PTFE

R-PTFE

Stainless steel

Zinc plated carbon steel

Zinc plated carbon steel

Vinyl (red)

Zinc plated carbon steel

Zinc plated carbon steel

Zinc plated carbon steel

Zinc plated SG iron

Zinc plated carbon steel

Stainless steel

Graphite

ASTM A 216 WCB

ASTM A 351 CF8M

SAE 1040 / AISI 316

AISI 316

AISI 316

PDR 0.8

SAE 1010 / 1045

AISI 301

SAE 12L14

SAE 1010

SAE 1045

SAE 1010

AISI 430

13

14

M40F ISO Ball Valve - Firesafe DN25 to DN150 ANSI Class 150 and ANSI Class 300

TI-P133-43 ST Issue 5
