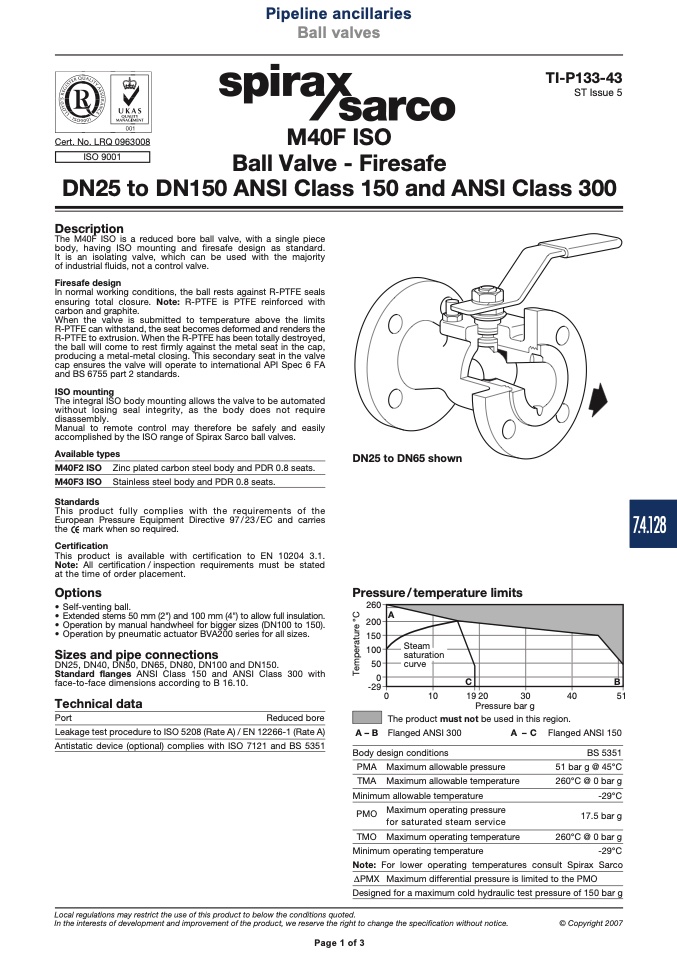

Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 1 of 3

ISO 9001

TI-P133-43

ST Issue 5

Cert. No. LRQ 0963008

M40F ISO

Ball Valve - Firesafe

DN25 to DN150 ANSI Class 150 and ANSI Class 300

Description

The M40F ISO is a reduced bore ball valve, with a single piece

body, having ISO mounting and firesafe design as standard.

It is an isolating valve, which can be used with the majority

of industrial fluids, not a control valve.

Firesafe design

In normal working conditions, the ball rests against R-PTFE seals

ensuring total closure. Note: R-PTFE is PTFE reinforced with

carbon and graphite.

When the valve is submitted to temperature above the limits

R-PTFE can withstand, the seat becomes deformed and renders the

R-PTFE to extrusion. When the R-PTFE has been totally destroyed,

the ball will come to rest firmly against the metal seat in the cap,

producing a metal-metal closing. This secondary seat in the valve

cap ensures the valve will operate to international API Spec 6 FA

and BS 6755 part 2 standards.

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly.

Manual to remote control may therefore be safely and easily

accomplished by the ISO range of Spirax Sarco ball valves.

Available types

M40F2 ISO Zinc plated carbon steel body and PDR 0.8 seats.

M40F3 ISO Stainless steel body and PDR 0.8 seats.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

• Extended stems 50 mm (2") and 100 mm (4") to allow full insulation.

• Operation by manual handwheel for bigger sizes (DN100 to 150).

• Operation by pneumatic actuator BVA200 series for all sizes.

Sizes and pipe connections

DN25, DN40, DN50, DN65, DN80, DN100 and DN150.

Standard flanges ANSI Class 150 and ANSI Class 300 with

face-to-face dimensions according to B 16.10.

Technical data

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device (optional) complies with ISO 7121 and BS 5351

DN25 to DN65 shown

Pressure/temperature limits

���

���

���

���

��

�

���

A – B

A

Steam

saturation

curve

C

B

Reduced bore

�

��

����

��

��

��

Pressure bar g

The product must not be used in this region.

Flanged ANSI 300

A – C

Flanged ANSI 150

BS 5351

51 bar g @ 45°C

260°C @ 0 bar g

-29°C

17.5 bar g

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 150 bar g

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Note: For lower operating temperatures consult Spirax Sarco

260°C @ 0 bar g

-29°C

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2007

Page 1 of 3

7.4.128
