Pipeline ancillaries

HVB3aslltvoaplveaslve

ISO 9001

7.4.117

A

Steam

saturation

curve

C

B

TI-P133-40

ST Issue 5

Cert. No. LRQ 0963008

Description

The M40S ISO Automation is a reduced bore ball valve, with a

single piece body, having ISO mounting as standard (making it

easy and safe to automate). It is an isolating valve, which can be

used with the majority of industrial fluids, not a control valve. The

valve is supplied without a handle (lever) and with a photochemical

name-plate welded to the body. The M40S ISO Automation is

available with either ANSI 150 or ANSI 300 flanges.

Sizes and pipe connections

Available types

M40S2 ISO

Automation

M40S3 ISO

Automation

Standards

Zinc plated carbon steel body, PDR 0.8 seats,

reduced bore and ISO mounting.

Stainless steel body, PDR 0.8 seats,

reduced bore and ISO mounting.

8

7

6

5

3

2

1

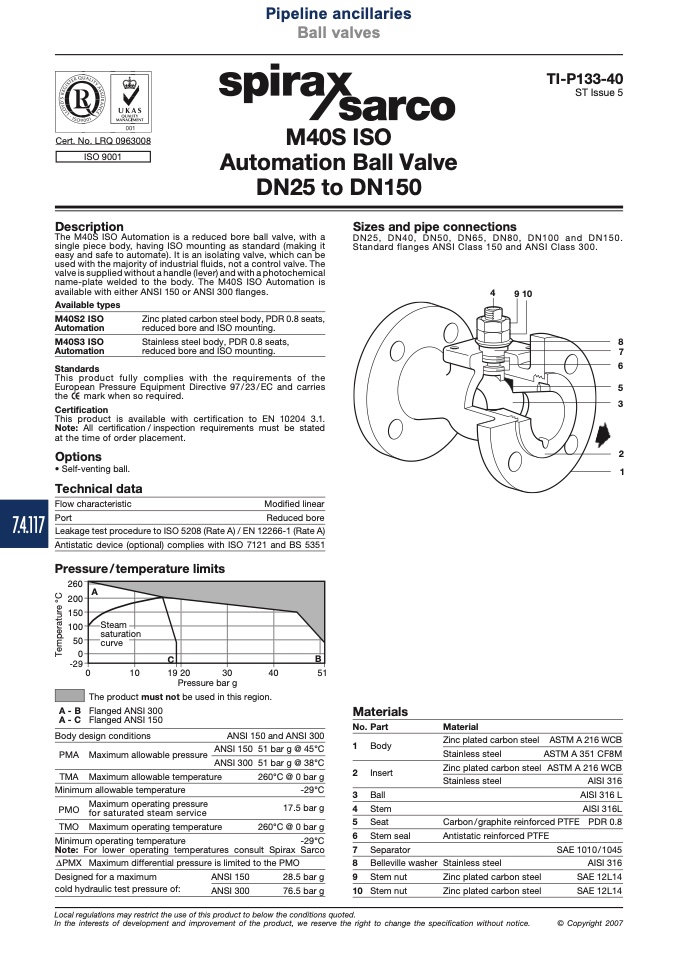

M40S ISO

Automation Ball Valve

DN25 to DN150

DN25, DN40, DN50, DN65, DN80, DN100 and DN150.

Standard flanges ANSI Class 150 and ANSI Class 300.

4

910

This product fully complies with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Options

• Self-venting ball.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device (optional) complies with ISO 7121 and BS 5351

Pressure/temperature limits

���

���

���

���

��

�

���

A - B

A - C

Modified linear

Reduced bore

�

��

����

��

��

��

Pressure bar g

The product must not be used in this region.

Flanged ANSI 300

Flanged ANSI 150

Materials

No. Part

1 Body

2 Insert

3 Ball

4 Stem

5 Seat

6 Stem seal

7 Separator

8 Belleville washer

9 Stem nut

10 Stem nut

Material

Body design conditions

ANSI 150 and ANSI 300

PMA Maximum allowable pressure

ANSI 150 51 bar g @ 45°C

ANSI 300 51 bar g @ 38°C

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Stainless steel

ASTM A 216 WCB

ASTM A 351 CF8M

ASTM A 216 WCB

AISI 316

AISI 316 L

AISI 316L

PDR 0.8

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

260°C @ 0 bar g

-29°C

17.5 bar g

260°C @ 0 bar g

Carbon/graphite reinforced PTFE

Antistatic reinforced PTFE

-29°C

Note: For lower operating temperatures consult Spirax Sarco

SAE 1010/1045

AISI 316

SAE 12L14

SAE 12L14

© Copyright 2007

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum

ANSI 150

28.5 bar g

Stainless steel

Zinc plated carbon steel

Zinc plated carbon steel

cold hydraulic test pressure of:

ANSI 300

76.5 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

T

e

m

p

e

r

a

t

u

r

e

°

C
