DN15 to DN50 - Spare parts (see page 6 for sizes DN65 - DN150)

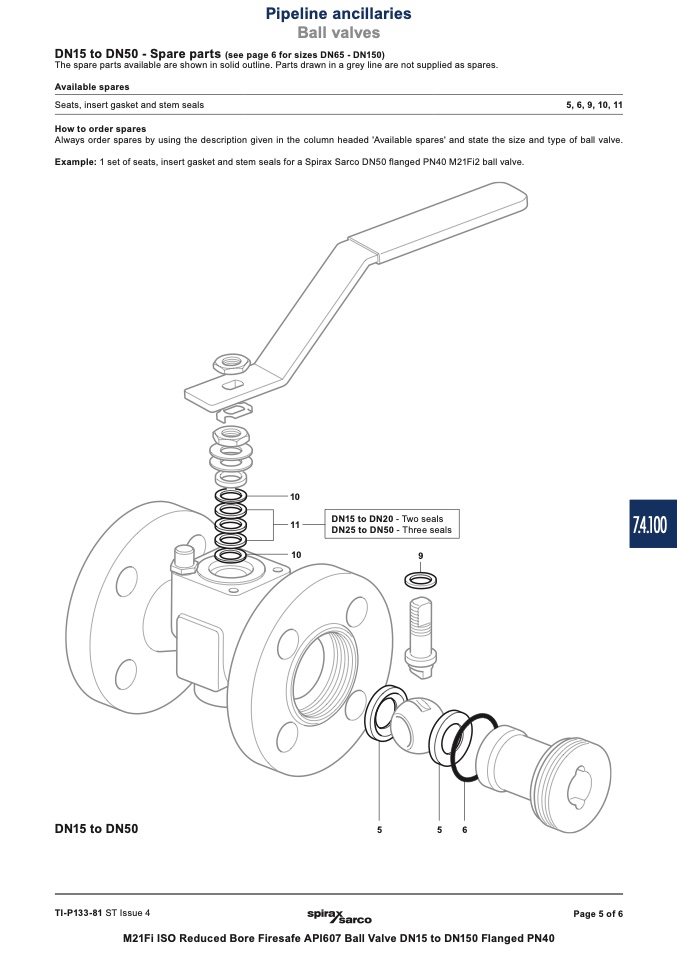

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Seats, insert gasket and stem seals

5, 6, 9, 10, 11

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 set of seats, insert gasket and stem seals for a Spirax Sarco DN50 flanged PN40 M21Fi2 ball valve.

10

11

10

9

DN15 to DN20 - Two seals

DN25 to DN50 - Three seals

DN15 to DN50

5

5

6

TI-P133-81 ST Issue 4

M21Fi ISO Reduced Bore Firesafe API607 Ball Valve DN15 to DN150 Flanged PN40
