Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 4 of 4

7.4.75

Spare parts

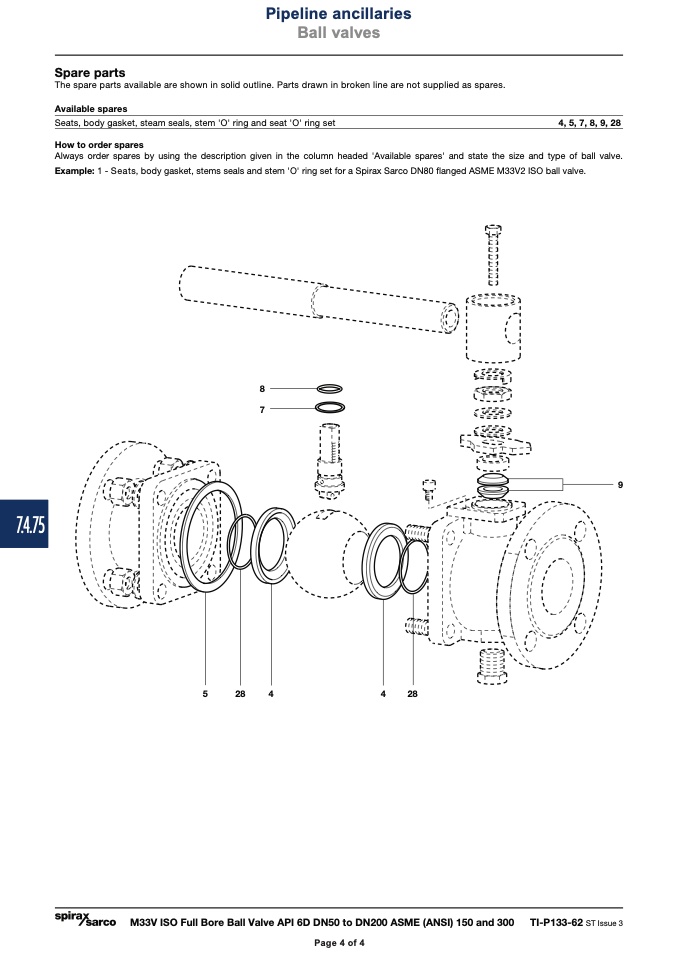

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Seats, body gasket, steam seals, stem 'O' ring and seat 'O' ring set

4, 5, 7, 8, 9, 28

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 - Seats, body gasket, stems seals and stem 'O' ring set for a Spirax Sarco DN80 flanged ASME M33V2 ISO ball valve.

8

7

9

5

28

4

4

28

M33V ISO Full Bore Ball Valve API 6D DN50 to DN200 ASME (ANSI) 150 and 300

TI-P133-62 ST Issue 3

Page 4 of 4
