For full details see the Installation and Maintenance Instructions supplied with the product.

Welding

Only the models that have connections designed for welding (ETO) should be welded. Valves with clamp connections must not be welded

to avoid damages to soft parts.

The M70i has a number of features that must be specified at the time of order placement; they are size, end connection, seat material,

internal surface finish, and any certification that is required.

Note: Cavity fillers are provided as standard. If cavity fillers are not required please specify so when placing an order.

Example: 1 off Spirax Sarco 1⁄2" M70iV ISO forged sanitary ball valve complete with sanitary clamp connections (ASME BPE) and an

internal surface finish of 0.5 micron Ra (20 micro inch).

The unit is to be supplied complete with EN 10204 3.1 material certification.

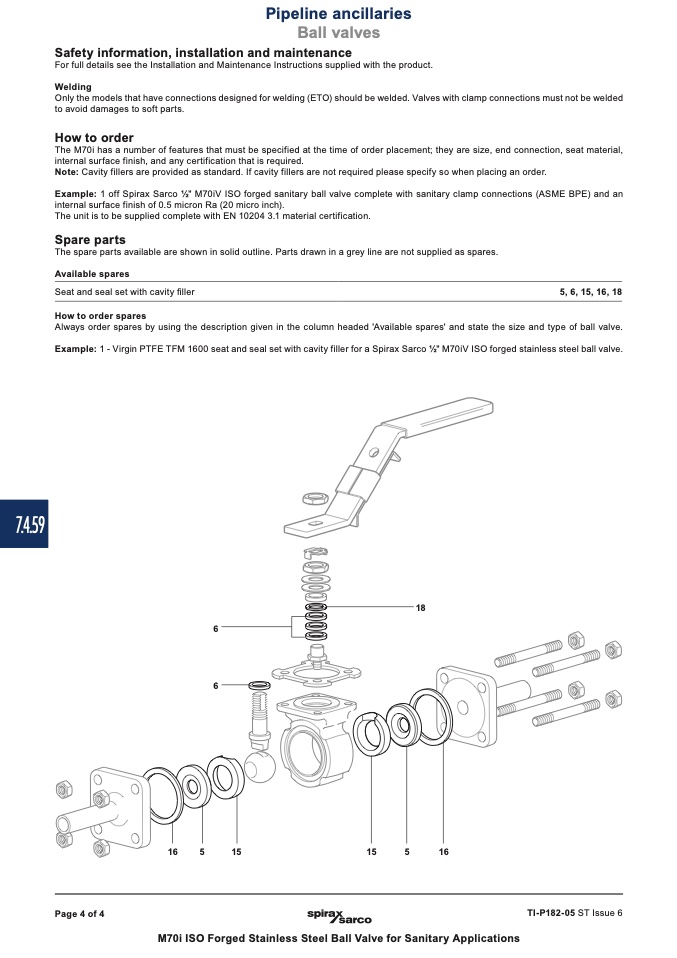

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Seat and seal set with cavity filler

How to order spares

5, 6, 15, 16, 18

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 - Virgin PTFE TFM 1600 seat and seal set with cavity filler for a Spirax Sarco 1⁄2" M70iV ISO forged stainless steel ball valve.

Page 4 of 4

TI-P182-05 ST Issue 6
