Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 2 of 3

7.4.33

13

12

14

8

7

9

18

11

10

6

4

5

3

17

16

6

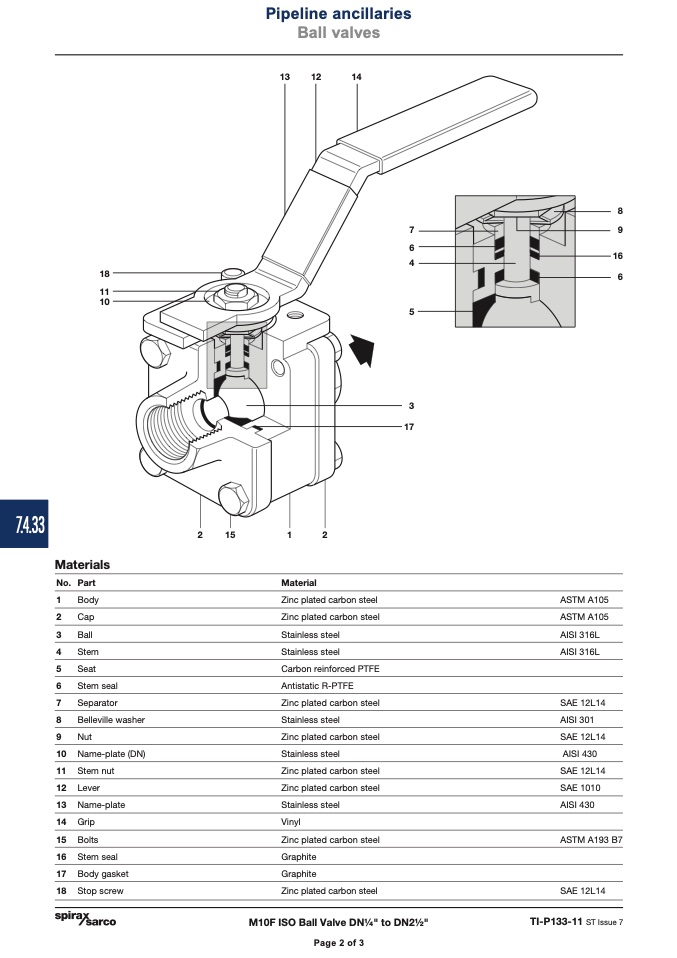

Materials

No. Part

1

Body

2

Cap

3

Ball

4

Stem

5

Seat

6

Stem seal

7

Separator

8

Belleville washer

9

Nut

10 Name-plate (DN)

11 Stem nut

12 Lever

13 Name-plate

14 Grip

15 Bolts

16 Stem seal

17 Body gasket

18 Stop screw

2

15

1

2

Material

Zinc plated carbon steel

Zinc plated carbon steel

Stainless steel

Stainless steel

Carbon reinforced PTFE

Antistatic R-PTFE

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Stainless steel

Zinc plated carbon steel

Zinc plated carbon steel

Stainless steel

Vinyl

Zinc plated carbon steel

Graphite

Graphite

Zinc plated carbon steel

ASTM A105

ASTM A105

AISI 316L

AISI 316L

SAE 12L14

AISI 301

SAE 12L14

AISI 430

SAE 12L14

SAE 1010

AISI 430

ASTM A193 B7

SAE 12L14

M10F ISO Ball Valve DN1⁄4" to DN21⁄2"

TI-P133-11 ST Issue 7

Page 2 of 3
