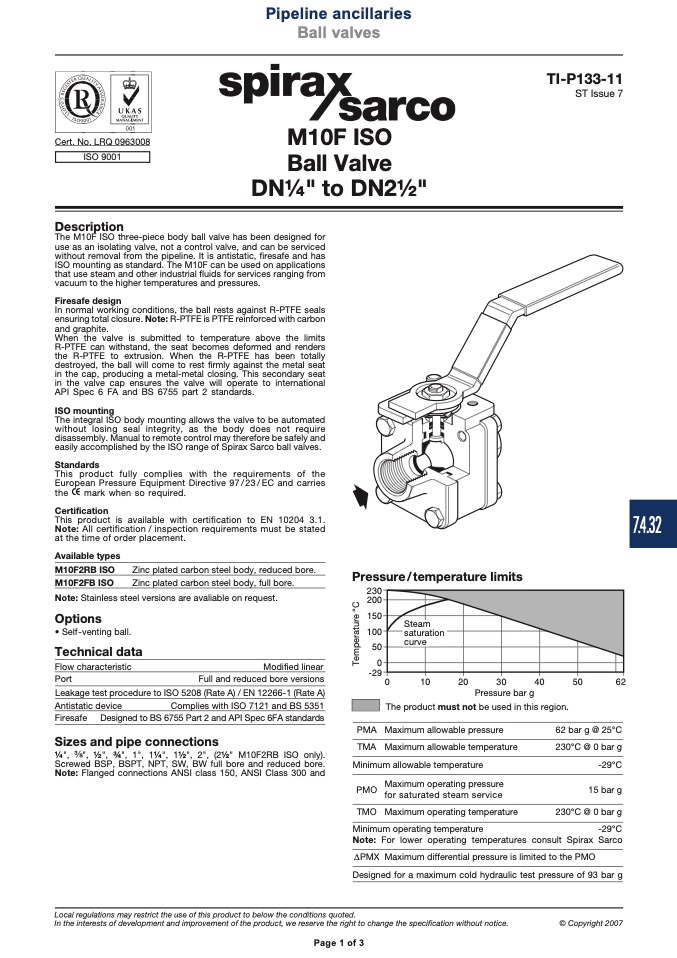

Spirax Sarco - Catalogo Agosto 2017

Pipeline ancillaries

HVB3aslltvoaplveaslve

Page 1 of 3

Cert. No. LRQ 0963008

Description

The M10F ISO three-piece body ball valve has been designed for

use as an isolating valve, not a control valve, and can be serviced

without removal from the pipeline. It is antistatic, firesafe and has

ISO mounting as standard. The M10F can be used on applications

that use steam and other industrial fluids for services ranging from

vacuum to the higher temperatures and pressures.

Firesafe design

In normal working conditions, the ball rests against R-PTFE seals

ensuring total closure. Note: R-PTFE is PTFE reinforced with carbon

and graphite.

When the valve is submitted to temperature above the limits

R-PTFE can withstand, the seat becomes deformed and renders

the R-PTFE to extrusion. When the R-PTFE has been totally

destroyed, the ball will come to rest firmly against the metal seat

in the cap, producing a metal-metal closing. This secondary seat

in the valve cap ensures the valve will operate to international

API Spec 6 FA and BS 6755 part 2 standards.

ISO mounting

The integral ISO body mounting allows the valve to be automated

without losing seal integrity, as the body does not require

disassembly. Manual to remote control may therefore be safely and

easily accomplished by the ISO range of Spirax Sarco ball valves.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Available types

M10F2RB ISO

Zinc plated carbon steel body, reduced bore.

M10F2FB ISO

Zinc plated carbon steel body, full bore.

Note: Stainless steel versions are avaliable on request.

Options

• Self-venting ball.

Technical data

Flow characteristic

Port

Leakage test procedure to ISO 5208 (Rate A) / EN 12266-1 (Rate A)

Antistatic device

Complies with ISO 7121 and BS 5351

Firesafe Designed to BS 6755 Part 2 and API Spec 6FA standards

Sizes and pipe connections

1⁄4", ", 1⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2", (21⁄2" M10F2RB ISO only).

Screwed BSP, BSPT, NPT, SW, BW full bore and reduced bore.

Note: Flanged connections ANSI class 150, ANSI Class 300 and

Pressure/temperature limits

��

�

��

PMA

ISO 9001

TI-P133-11

ST Issue 7

M10F ISO

Ball Valve

DN1⁄4" to DN21⁄2"

Steam

saturation

curve

Modified linear

Full and reduced bore versions

�

��

Pressure bar g

The product must not be used in this region.

Maximum allowable pressure

62 bar g @ 25°C

230°C @ 0 bar g

-29°C

15 bar g

230°C @ 0 bar g

TMA

Minimum allowable temperature

Maximum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

-29°C

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of 93 bar g

Local regulations may restrict the use of this product to below the conditions quoted.
