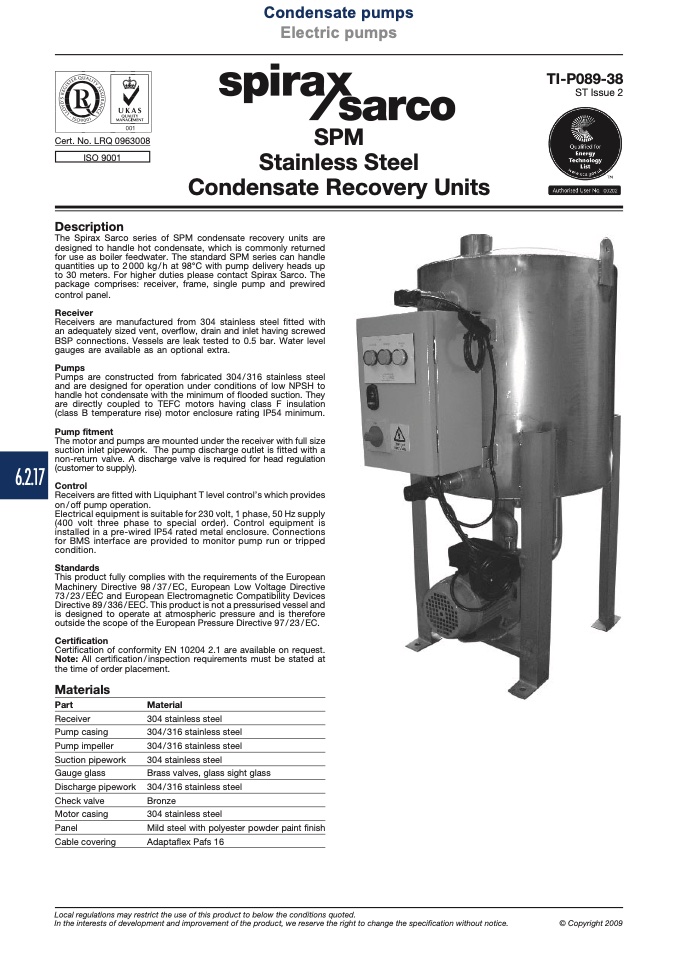

Condensate pumps

Electric pumps

6.2.17

ISO 9001

TI-P089-38

ST Issue 2

Cert. No. LRQ 0963008

SPM

Stainless Steel

Condensate Recovery Units

Description

The Spirax Sarco series of SPM condensate recovery units are

designed to handle hot condensate, which is commonly returned

for use as boiler feedwater. The standard SPM series can handle

quantities up to 2000 kg/h at 98°C with pump delivery heads up

to 30 meters. For higher duties please contact Spirax Sarco. The

package comprises: receiver, frame, single pump and prewired

control panel.

Receiver

Receivers are manufactured from 304 stainless steel fitted with

an adequately sized vent, overflow, drain and inlet having screwed

BSP connections. Vessels are leak tested to 0.5 bar. Water level

gauges are available as an optional extra.

Pumps

Pumps are constructed from fabricated 304/316 stainless steel

and are designed for operation under conditions of low NPSH to

handle hot condensate with the minimum of flooded suction. They

are directly coupled to TEFC motors having class F insulation

(class B temperature rise) motor enclosure rating IP54 minimum.

Pump fitment

The motor and pumps are mounted under the receiver with full size

suction inlet pipework. The pump discharge outlet is fitted with a

non-return valve. A discharge valve is required for head regulation

(customer to supply).

Control

Receivers are fitted with Liquiphant T level control’s which provides

on/off pump operation.

Electrical equipment is suitable for 230 volt, 1 phase, 50 Hz supply

(400 volt three phase to special order). Control equipment is

installed in a pre-wired IP54 rated metal enclosure. Connections

for BMS interface are provided to monitor pump run or tripped

condition.

Standards

This product fully complies with the requirements of the European

Machinery Directive 98/37/EC, European Low Voltage Directive

73/23/EEC and European Electromagnetic Compatibility Devices

Directive 89 / 336 / EEC. This product is not a pressurised vessel and

is designed to operate at atmospheric pressure and is therefore

outside the scope of the European Pressure Directive 97/23/EC.

Certification

Certification of conformity EN 10204 2.1 are available on request.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Materials

Part

Receiver

Pump casing

Pump impeller

Suction pipework

Gauge glass

Discharge pipework

Check valve

Motor casing

Panel

Cable covering

Material

304 stainless steel

304/316 stainless steel

304/316 stainless steel

304 stainless steel

Brass valves, glass sight glass

304/316 stainless steel

Bronze

304 stainless steel

Mild steel with polyester powder paint finish

Adaptaflex Pafs 16

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2009
