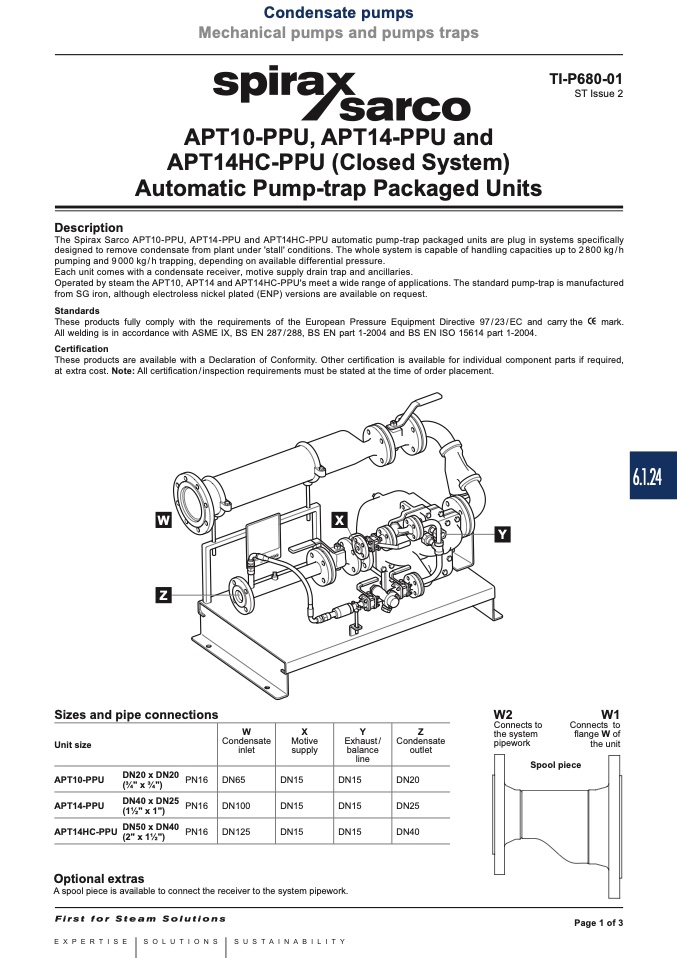

Condensate pumps

Mechanical pumps and pumps traps

APT10-PPU, APT14-PPU and

APT14HC-PPU (Closed System)

Automatic Pump-trap Packaged Units

Description

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

The Spirax Sarco APT10-PPU, APT14-PPU and APT14HC-PPU automatic pump-trap packaged units are plug in systems specifically

designed to remove condensate from plant under 'stall' conditions. The whole system is capable of handling capacities up to 2800 kg/h

pumping and 9 000 kg / h trapping, depending on available differential pressure.

Each unit comes with a condensate receiver, motive supply drain trap and ancillaries.

Operated by steam the APT10, APT14 and APT14HC-PPU's meet a wide range of applications. The standard pump-trap is manufactured

from SG iron, although electroless nickel plated (ENP) versions are available on request.

Standards

These products fully comply with the requirements of the European Pressure Equipment Directive 97/23/EC and carrythe

mark.

All welding is in accordance with ASME IX, BS EN 287/288, BS EN part 1-2004 and BS EN ISO 15614 part 1-2004.

Certification

These products are available with a Declaration of Conformity. Other certification is available for individual component parts if required,

at extra cost. Note: All certification / inspection requirements must be stated at the time of order placement.

Z

Sizes and pipe connections

Unit size

APT10-PPU

DN20 x DN20

PN16

(3⁄4" x 3⁄4")

APT14-PPU

DN40 x DN25

PN16

(11⁄2" x 1")

APT14HC-PPU

DN50 x DN40

PN16

(2" x 11⁄2")

Optional extras

W2

W1

W

X

Y

A spool piece is available to connect the receiver to the system pipework.

W

X

Y

Z

Connects to

the system

pipework

Connects to

flange W of

the unit

Condensate

Motive

inlet

supply

DN65

DN15

DN100

DN15

DN125

DN15

Exhaust / Condensate

balance

line

DN15

DN20

DN15

DN25

DN15

DN40

outlet

TI-P680-01

ST Issue 2

Spool piece

Page 1 of 3

6.1.24
