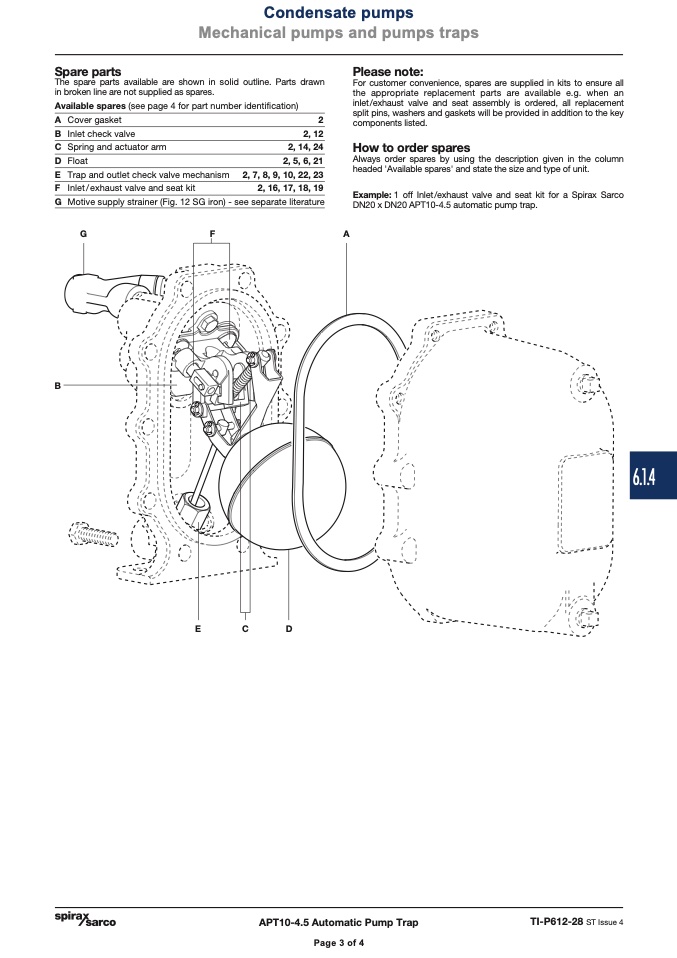

Spare parts

The spare parts available are shown in solid outline. Parts drawn

in broken line are not supplied as spares.

Please note:

For customer convenience, spares are supplied in kits to ensure all

the appropriate replacement parts are available e.g. when an

inlet/exhaust valve and seat assembly is ordered, all replacement

split pins, washers and gaskets will be provided in addition to the key

components listed.

How to order spares

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of unit.

Example: 1 off Inlet /exhaust valve and seat kit for a Spirax Sarco

DN20 x DN20 APT10-4.5 automatic pump trap.

Available spares (see page 4 for part number identification)

A Cover gasket

B Inlet check valve

C Spring and actuator arm

D Float

E Trap and outlet check valve mechanism

F Inlet/exhaust valve and seat kit

G Motive supply strainer (Fig. 12 SG iron) - see separate literature

B

Condensate pumps

Mechanical pumps and pumps traps

G

F

A

2

2, 12

2, 14, 24

2, 5, 6, 21

2, 7, 8, 9, 10, 22, 23

2, 16, 17, 18, 19

E

C

D
