Steam traps

Manifolds and insulation jackets

5.10.9

ISO 9001

Cert. No. LRQ 0963008

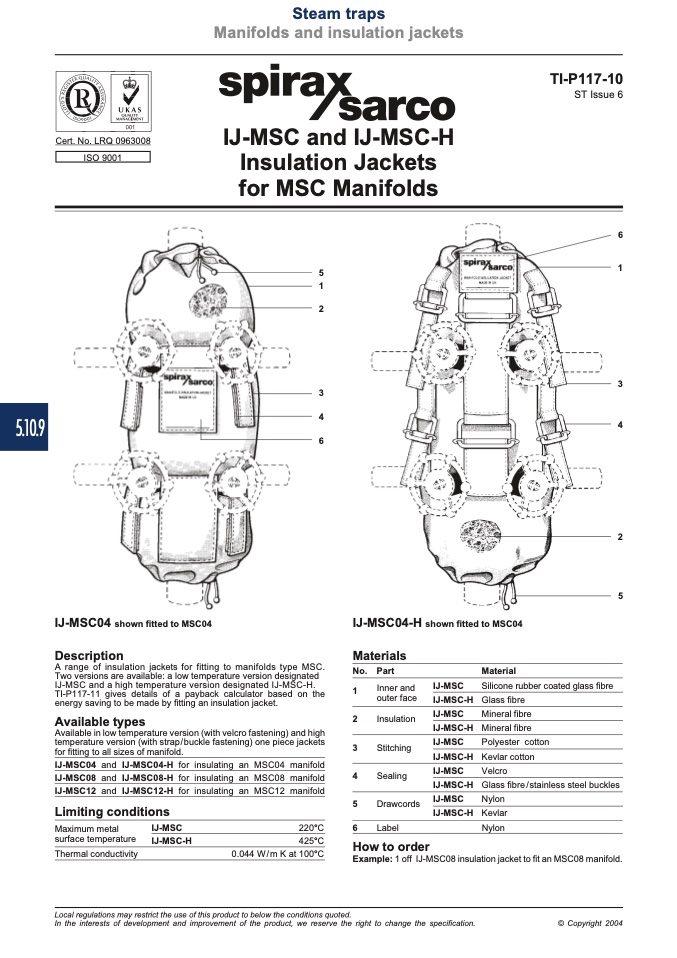

IJ-MSC and IJ-MSC-H

Insulation Jackets

for MSC Manifolds

5

1

2

3

4

6

TI-P117-10

ST Issue 6

6

1

3

4

2

5

IJ-MSC04 shown fitted to MSC04

Description

IJ-MSC04-H shown fitted to MSC04

Material

A range of insulation jackets for fitting to manifolds type MSC.

Two versions are available: a low temperature version designated

IJ-MSC and a high temperature version designated IJ-MSC-H.

TI-P117-11 gives details of a payback calculator based on the

energy saving to be made by fitting an insulation jacket.

Available types

Available in low temperature version (with velcro fastening) and high

temperature version (with strap / buckle fastening) one piece jackets

for fitting to all sizes of manifold.

IJ-MSC04 and IJ-MSC04-H for insulating an MSC04 manifold

IJ-MSC08 and IJ-MSC08-H for insulating an MSC08 manifold

IJ-MSC12 and IJ-MSC12-H for insulating an MSC12 manifold

Limiting conditions

Materials

No. Part

1

Inner and

outer face

2

Insulation

3

Stitching

4

Sealing

5

Drawcords

6

Label

IJ-MSC

IJ-MSC-H

IJ-MSC

IJ-MSC-H

IJ-MSC

IJ-MSC-H

IJ-MSC

IJ-MSC-H

IJ-MSC

IJ-MSC-H

Silicone rubber coated glass fibre

Glass fibre

Mineral fibre

Mineral fibre

Maximum metal

surface temperature

Thermal conductivity

IJ-MSC

220°C

Polyester cotton

Kevlar cotton

Velcro

Glass fibre / stainless steel buckles

Nylon

Kevlar

Nylon

IJ-MSC-H

425°C

0.044 W/m K at 100°C

How to order

Example: 1 off IJ-MSC08 insulation jacket to fit an MSC08 manifold.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2004
