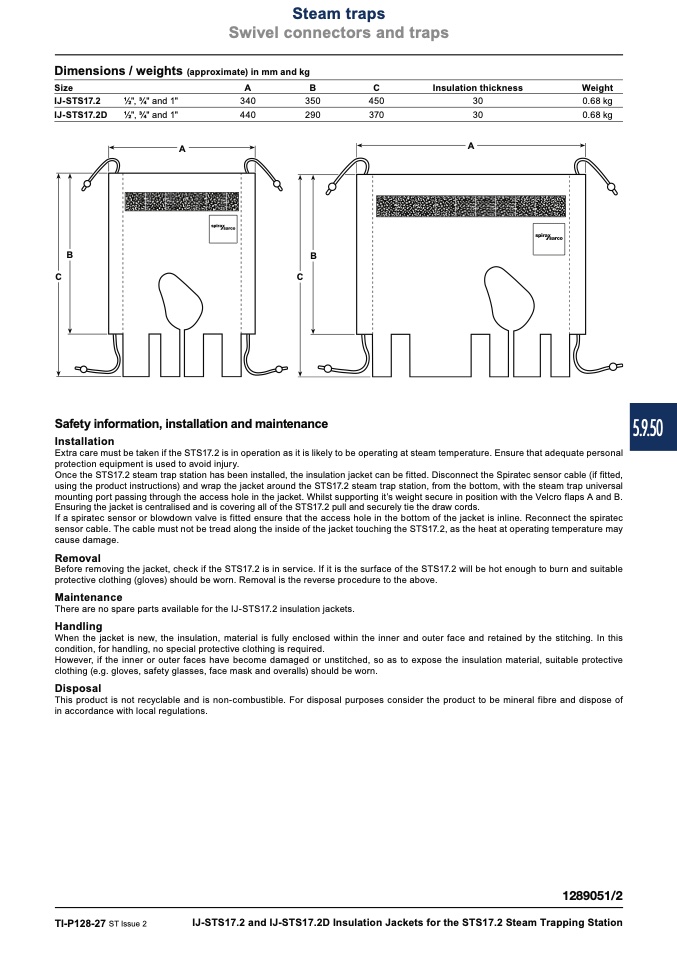

Steam traps

Swivel connectors and traps

Dimensions / weights (approximate) in mm and kg

Size

IJ-STS17.2

IJ-STS17.2D

1⁄2", 3⁄4" and 1"

1⁄2", 3⁄4" and 1"

A

B

C

340

350

450

440

290

370

Insulation thickness

30

30

A

Weight

0.68 kg

0.68 kg

A

B

B

C

C

Safety information, installation and maintenance

Installation

Extra care must be taken if the STS17.2 is in operation as it is likely to be operating at steam temperature. Ensure that adequate personal

protection equipment is used to avoid injury.

Once the STS17.2 steam trap station has been installed, the insulation jacket can be fitted. Disconnect the Spiratec sensor cable (if fitted,

using the product instructions) and wrap the jacket around the STS17.2 steam trap station, from the bottom, with the steam trap universal

mounting port passing through the access hole in the jacket. Whilst supporting it’s weight secure in position with the Velcro flaps A and B.

Ensuring the jacket is centralised and is covering all of the STS17.2 pull and securely tie the draw cords.

If a spiratec sensor or blowdown valve is fitted ensure that the access hole in the bottom of the jacket is inline. Reconnect the spiratec

sensor cable. The cable must not be tread along the inside of the jacket touching the STS17.2, as the heat at operating temperature may

cause damage.

Removal

Before removing the jacket, check if the STS17.2 is in service. If it is the surface of the STS17.2 will be hot enough to burn and suitable

protective clothing (gloves) should be worn. Removal is the reverse procedure to the above.

Maintenance

There are no spare parts available for the IJ-STS17.2 insulation jackets.

Handling

When the jacket is new, the insulation, material is fully enclosed within the inner and outer face and retained by the stitching. In this

condition, for handling, no special protective clothing is required.

However, if the inner or outer faces have become damaged or unstitched, so as to expose the insulation material, suitable protective

clothing (e.g. gloves, safety glasses, face mask and overalls) should be worn.

Disposal

This product is not recyclable and is non-combustible. For disposal purposes consider the product to be mineral fibre and dispose of

in accordance with local regulations.

1289051/2

TI-P128-27 ST Issue 2

IJ-STS17.2 and IJ-STS17.2D Insulation Jackets for the STS17.2 Steam Trapping Station

5.9.50
