5.9.49

Steam traps

IJ-STS17.2 and IJ-STS17.2D

Insulation Jackets

for the STS17.2 Steam Trapping Station

Swivel connectors and traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2012

TI-P128-27

ST Issue 2

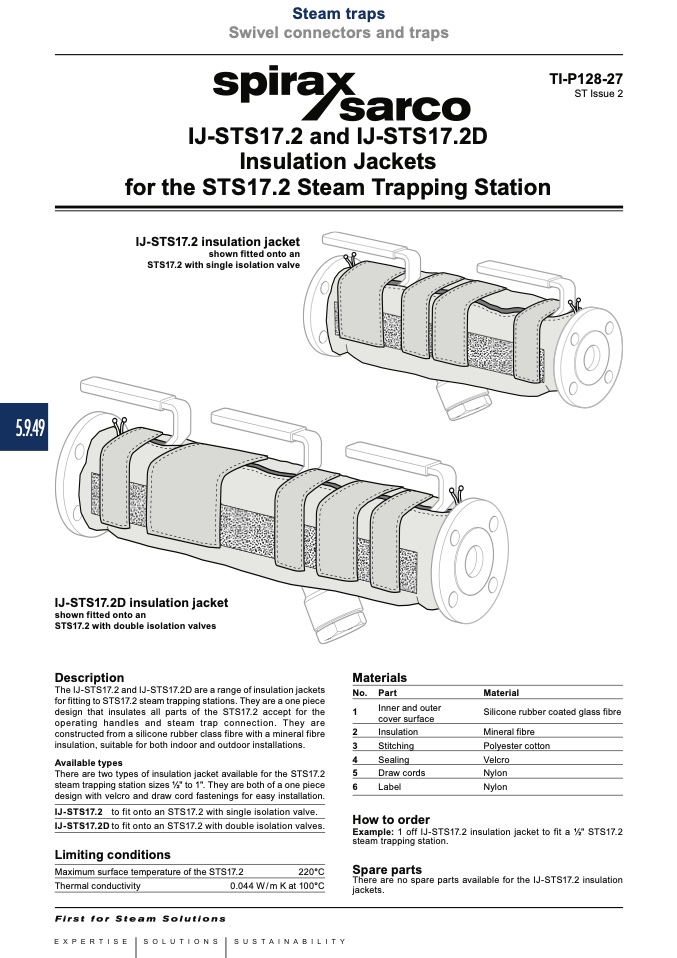

IJ-STS17.2 insulation jacket

shown fitted onto an

STS17.2 with single isolation valve

IJ-STS17.2D insulation jacket

shown fitted onto an

STS17.2 with double isolation valves

Description

The IJ-STS17.2 and IJ-STS17.2D are a range of insulation jackets

for fitting to STS17.2 steam trapping stations. They are a one piece

design that insulates all parts of the STS17.2 accept for the

operating handles and steam trap connection. They are

constructed from a silicone rubber class fibre with a mineral fibre

insulation, suitable for both indoor and outdoor installations.

Available types

There are two types of insulation jacket available for the STS17.2

steam trapping station sizes 1⁄2" to 1". They are both of a one piece

design with velcro and draw cord fastenings for easy installation.

IJ-STS17.2 to fit onto an STS17.2 with single isolation valve.

IJ-STS17.2D to fit onto an STS17.2 with double isolation valves.

Limiting conditions

Maximum surface temperature of the STS17.2

220°C

Thermal conductivity

0.044 W/m K at 100°C

Materials

No. Part

Inner and outer

1

cover surface

2

Insulation

3

Stitching

4

Sealing

5

Draw cords

6

Label

Material

Silicone rubber coated glass fibre

Mineral fibre

Polyester cotton

Velcro

Nylon

Nylon

How to order

Example: 1 off IJ-STS17.2 insulation jacket to fit a 1⁄2" STS17.2

steam trapping station.

There are no spare parts available for the IJ-STS17.2 insulation

jackets.

Spare parts
